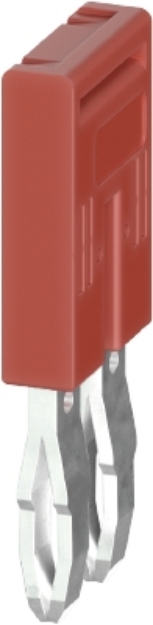

Push Jumper Bar - 2 Pole - 2.5mm - WTPN

2 Pole, jumper bar IVB WTPN 2.5-2, 5.1mm spacing, insulated, red

$200.00

(250 Pack excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: WIE-0D.203.3227.5 Manufacturer part number: 0D.203.3227.5 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100



Push Jumper Bar - 2 Pole - 2.5mm - WTPN

Jumper bar IVB WTPN 2,5-2 is a 2-pole, red solution for reliable electrical termination and distribution. Key characteristics include pluggable mounting. Additional design features include a 8.8 mm grid width, UL94 V0 flammability performance, and halogen-free construction.



Technical Details

  • Net weight single part: 1.32 g
  • Color: red
  • Inflammability class of insulation material acc. with UL94: V0
  • Width/grid dimension: 8.8 mm
  • Length: 3 mm
  • Modular spacing: 5.1 mm
  • Number of bridged clamps: 2
  • Mounting method: pluggable
  • Insulated: yes
  • Model: cross connector
  • Height: 23 mm
  • Halogen free: yes



SKU WIE-0D.203.3227.5
MPN 0D.203.3227.5
EAN 4049088707193

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Poles 2
Colour Red
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.



Push Jumper Bar - 2 Pole - 2.5mm - WTPN

Jumper bar IVB WTPN 2,5-2 is a 2-pole, red solution for reliable electrical termination and distribution. Key characteristics include pluggable mounting. Additional design features include a 8.8 mm grid width, UL94 V0 flammability performance, and halogen-free construction.



Technical Details

  • Net weight single part: 1.32 g
  • Color: red
  • Inflammability class of insulation material acc. with UL94: V0
  • Width/grid dimension: 8.8 mm
  • Length: 3 mm
  • Modular spacing: 5.1 mm
  • Number of bridged clamps: 2
  • Mounting method: pluggable
  • Insulated: yes
  • Model: cross connector
  • Height: 23 mm
  • Halogen free: yes



SKU WIE-0D.203.3227.5
MPN 0D.203.3227.5
EAN 4049088707193

Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Poles 2
Colour Red
