LiYCY 5x0.5

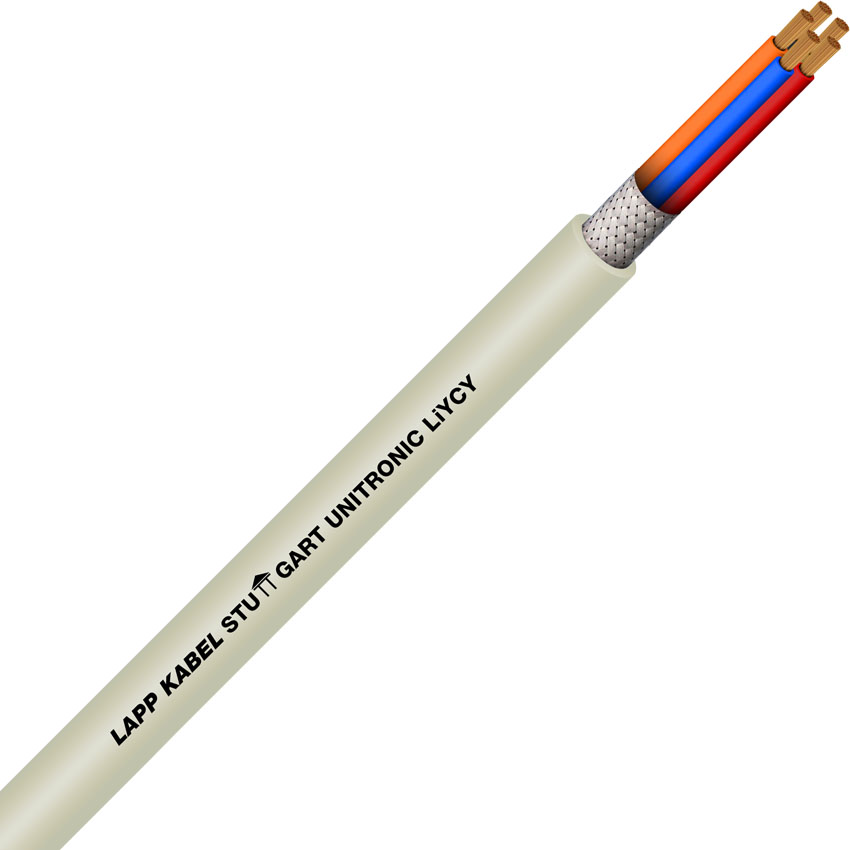

UNITRONIC® LiYCY, Screened Data Cable with small dimensions, 5x0.5

Free shipping on Web orders over $100

$5.36

(Per/m excl GST)

In Stock

Quantity Breaks

100+

500+

$5.36

SKU: LAPP-0034605 Manufacturer part number: 0034605 Manufacturer: UNITRONIC®

Qty:

Overview
Specifications
Contact Us
Downloads

Benefits

Overall braid minimises electrical
interference
Multifunctional application possibilities

Application range

Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
Dry or damp rooms

Product features

Flame-retardant according IEC 60332-1-2

Norm references / Approvals

Based on VDE 0812

Product Make-up

Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
Core insulation made of PVC
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)

Temperature range

Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

SKU

LAPP-0034605

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in Australia	Only Show Stocked Items
Locally Stocked in NZ	Only Show Stocked Items
Number of Conductors	5
Conductor Size	0.5mm

Your name *

Your email *

Enquiry *

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 279-280
