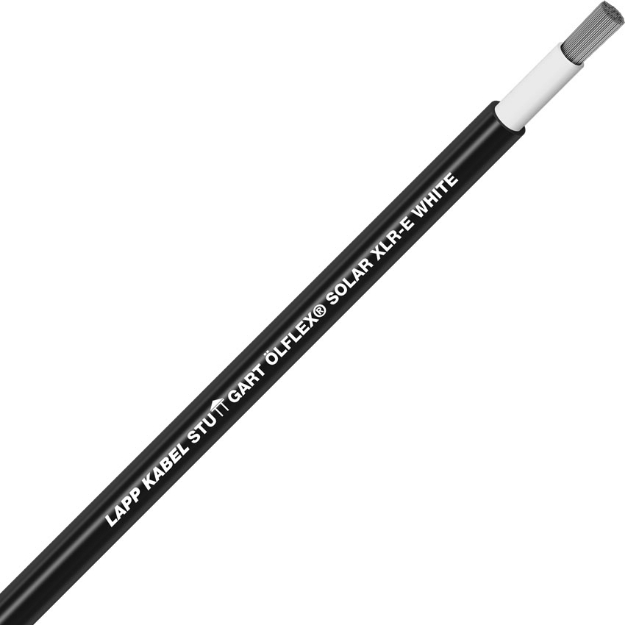

LAPP Solar Cable 1x4mm EN 50618

ÖLFLEX® Solar XLR-E Cross-linked solar cable EN 50618 certified + IEC 62930 conformity

Free shipping on Web orders over $100

$237.00
(100m excl GST)
In Stock
Quantity Breaks
1+
5+
25+
$237.00
$237.00
$237.00
SKU: LAPP-1023652s Manufacturer part number: 1023652s Manufacturer: ÖLFLEX®

ÖLFLEX® Solar XLR-E Cross-linked solar cable - type H1Z2Z2-K certified according to EN 50618

EN 50618 is a new a higher level standard that supercedes the older PV1-F standard which is no longer in effect. The new LAPP XLR-E Solar Cable has improved sheath technology to ensure this is the right cable for your application long term.



Approvals

  • Independently certified by TUV to EN 50618
  • Design conforms to the new standard IEC 62930

Benefits

  • Robust against mechanical impacts
  • For outdoor applications
  • Extruded colour stripe serves as reverse polarity protection during installation.
  • Exact quantity control during installation by meter marking on the cable sheath
  • Reduction of flame propagation and of toxic combustion gases in the event of fire

Application Range

  • For use in photovoltaic-systems with rated voltage 1500 V DC
  • For the cabling between the Solar modules and as extension cable between the module strings and the DC/AC inverter
  • Gable and flat roof photovoltaic systems
  • Photovoltaic plants and Solar parks
  • Not suitable for direct burial, Installation according to IEC 60364-5-52, respectively HD 60364-5-52

Product Features

  • Halogen-free and flame-retardant
  • Weather/UV-resistant acc. to EN 50618, appendix E
  • Ozone-resistant according to EN 50396
  • XLR-E = X-Linked Radiated-EN Standard
  • Proven electron beam cross-linked quality

Nominal voltage

  • DC U0/U : 1,5/1,5 kV
  • Max. permissible operating voltage:
    DC 1,8 kV (Conductor-conductor, non earthed system)

Temperature range
-40°C to +120°C max. conductor temperature

Minimum bending radius
Fixed installation: 4 x outer diameter

Conductor stranding
Fine wire according to VDE 0295, class 5/IEC 60228 class 5

Test voltage
AC 6500 V


SKU: LAPP-1023652s
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Conductor Size 4mm
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Conductors 1
Colour Black
*
*
*
