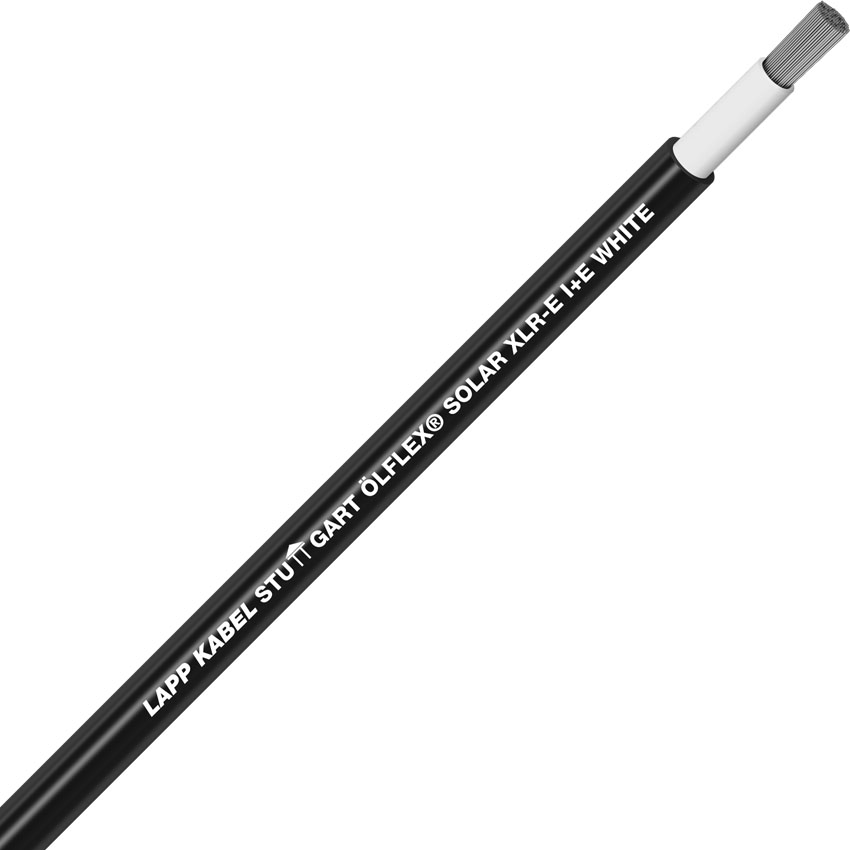

LAPP Solar Cable 1x4mm IEC 62930 (500m Drum)

ÖLFLEX^® Solar XLR-E I+E, E-beam crosslinked EN 50618 solar cable - 62930 IEC 131 type

These cross-linked, halogen-free and double-insulated solar cables are weather - and UV-resistant, suitable for permanent outdoor use and especially for the interconnection of grounded and ungrounded photovoltaic power systems. They are applicable for the connection of solar panels among themselves and as extension cable between the individual module strings or the DC/AC inverter. They are intended for permanent use outdoor and indoor, for free movable, free hanging and fixed installation. It is also permitted to install the cables in conduit or trunking systems. The expected period of use under normal usage conditions as specified in IEC 62930 and EN 50618 is at least 25 years.

Norm references / Approvals

• H1Z2Z2-K approved by TÜV acc. to EN 50618
• 62930 IEC 131 approved by TÜV acc. to IEC 62930

Benefits

• Reduction of flame propagation and of toxic combustion gases in the event of fire
• Robust against mechanical impacts
• Exact quantity control during installation by meter marking on the cable sheath

Application Range

• For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter
• They are suitable for the application in /at equipment with protective insulation (protection class II).
• For outdoor applications
• Long-term permanent storage/ operation in water not permitted
• Not suitable for direct burial, Installation according to IEC 60364-5-52, respectively HD 60364-5-52.

Product Features

• Weathering/ UV resistant
• Ozone resistant
• Flame retardant
• Halogen-free
• Non-corrosive
• Low Smoke Density
• Short-circuit and earth fault proof

Nominal voltage

• AC U0/U: 1.0/1.0 kV
• DC U0/U: 1.5/1.5 kV
• Max. permissible DC operating voltage: 1.8 kV

Test voltage

• AC 6500 V

Temperature range for PV installations

• Stationary: -40°C
• Flexible: -25°C to +90°C.

Minimum bending radius

• 4 x outer diameter for outer diameter </= 8 mm.
• 5 x outer diameter for outer diameter > 8 mm.

Conductor stranding

• Fine wire according to VDE 0295, class 5/IEC 60228 class 5

Limitations

They are not intended for direct burial. Long-term, permanent storage or constant use of the cables in or underwater is not permitted. It has to be ensured that no long-term contact with water will occur and that any waterlogging is sure to be drawn away. For water submersible applications please see our ÖLFLEX^® SOLAR XLWP range of cable.

Old SKU: LAPP-1023652
New SKU: LAPP-1023716
MPN: 1023716
