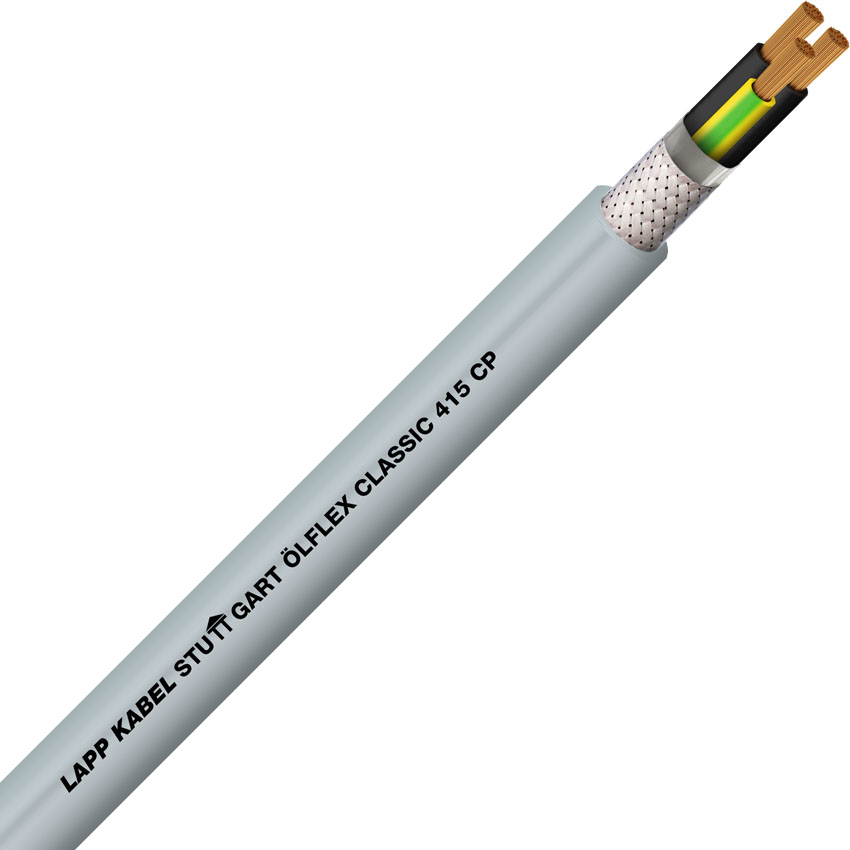

PUR Screened Flex 3G1

Name: PUR Screened Flex 3G1
SKU: LAPP-1314033
Price: 13.40 AUD
Availability: InStock

ÖLFLEX® CLASSIC 415 CP Screened, reduced outer diameter 3G1 (2 + E)

$13.40 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-1314033 Manufacturer part number: 1314033 Price breaks available:

Select or Type Quantity

SKU: LAPP-1314033 Manufacturer part number: 1314033 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Benefits

Space and weight-saving installations due to small cable diameters
Increased durability under harsh conditions thanks to robust PUR outer sheath
Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Copper braiding screens the cable against
electromagnetic interference

Application range

Industrial machinery and machine tools
Measurement, control and electrical applications
Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
Under consideration of the temperature range also suitable for outdoor use

Product features

High oil-resistance
Abrasion and notch-resistant
EMC-compliant
Low-adhesive surface
Resistant to hydrolysis and microbes

Norm references / Approvals

Core based on VDE 0812/0285
Outer sheath based on VDE 0250/0285

Product Make-up

Fine-wire, bare copper conductor
Core insulation: special PVC
Cores twisted in layers
Plastic foil wrapping
Tinned-copper braiding
Special polyurethane outer sheath (PUR)
Sheath colour: Grey (similar RAL 7001)

SKU

LAPP-1314033

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	3
Conductor Size	1mm
Colour	Grey

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 75
