PUR Screened Flex 4X0.5

ÖLFLEX® CLASSIC 415 CP Screened, reduced outer diameter 4X0.5 (No Earth)

Free shipping on Web orders over $100

$10.30
(Per/m excl GST)
Global Stock
Quantity Breaks
1+
100+
500+
$10.30
$10.30
$10.30
SKU: LAPP-1314004 Manufacturer part number: 1314004

Benefits

  • Space and weight-saving installations due to small cable diameters
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Copper braiding screens the cable against
    electromagnetic interference

Application range

  • Industrial machinery and machine tools
  • Measurement, control and electrical applications
  • Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
  • Under consideration of the temperature range also suitable for outdoor use

Product features

  • High oil-resistance
  • Abrasion and notch-resistant
  • EMC-compliant
  • Low-adhesive surface
  • Resistant to hydrolysis and microbes

Norm references / Approvals

  • Core based on VDE 0812/0285
  • Outer sheath based on VDE 0250/0285

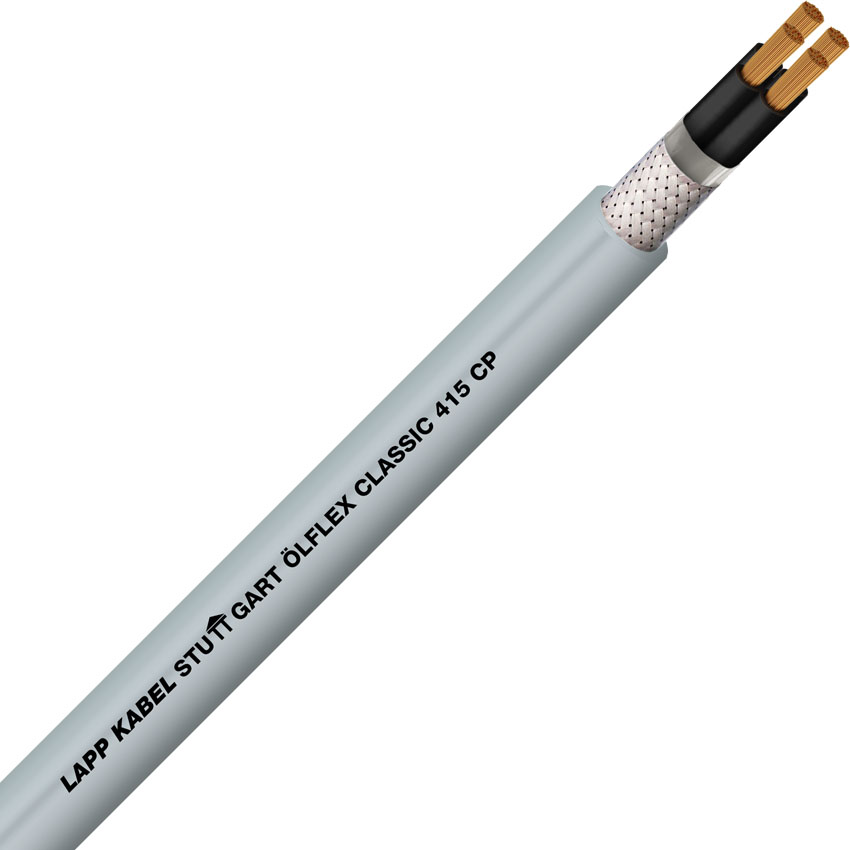

Product Make-up

  • Fine-wire, bare copper conductor
  • Core insulation: special PVC
  • Cores twisted in layers
  • Plastic foil wrapping
  • Tinned-copper braiding
  • Special polyurethane outer sheath (PUR)
  • Sheath colour: Grey (similar RAL 7001)

SKU
LAPP-1314004
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 4
Conductor Size 0.5mm
Colour Grey
*
*
*
