PUR Special Screened Flex 12G1

Benefits

• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Compatible with a multitude of acidic cleaning and disinfection solutions
• Additional robustness thanks to inner sheath
• Copper braiding screens the cable against
  electromagnetic interference

Application range

• Industrial machinery and machine tools
• Measurement, control and electrical applications
• Food production and packaging machinery
• Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
• Under consideration of the temperature range also suitable for flexible outdoor use

Product features

• High oil-resistance
• Abrasion and notch-resistant
• EMC-compliant
• Low-adhesive surface
• Resistant to hydrolysis and microbes

Norm references / Approvals

• Based on VDE 0285
• Certified resistance to disinfection and cleaning solutions used in food and beverage industry

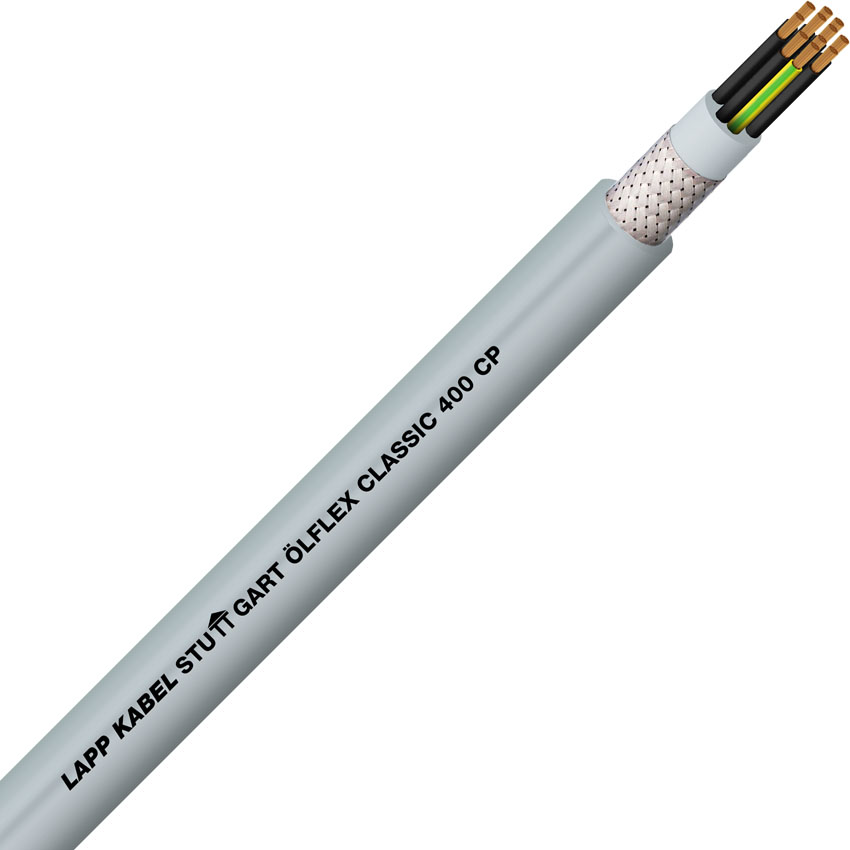

Product Make-up

• Fine-wire, bare copper conductor
• Core insulation: special PVC
• Cores twisted in layers
• PVC inner sheath, grey
• Tinned-copper braiding
• Special polyurethane outer sheath (PUR)
• Sheath colour: Grey (similar RAL 7001)
