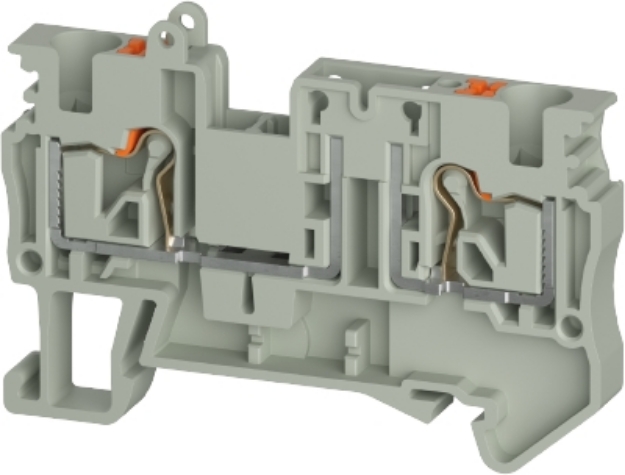

Push Disconnect Terminal - 4mm - WTPN

Name: Push Disconnect Terminal - 4mm - WTPN
SKU: WIE-5D.204.4155.0
Price: 5.39 NZD
Availability: InStock

2 Pole, knife disconnect terminal WTPN 4 TK rated voltage 500V, rated current 20A, 4mm, push-In connection

$5.39 (Each excl GST)

(Each excl GST)

In Stock

SKU: WIE-5D.204.4155.0 Manufacturer part number: 5D.204.4155.0 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-5D.204.4155.0 Manufacturer part number: 5D.204.4155.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Cutting Clamp WTPN 4 TK

The Cutting Clamp WTPN 4 TK is a grey, pluggable, single-level terminal with a push-in connection and 4 mm² nominal cross section. It is rated for 500 V and 20 A and features a V0 thermoplastic insulating housing.

Technical Details

Nominal cross section: 4 mm²
Color: grey
Number of levels: 1
Number of clamp positions per level: 1
Width/grid dimension: 6.1 mm
Insulating housing: PA
Inflammability class of insulation material according to UL94: V0
Mounting method: pluggable
Connection type: push-In connection//true
Halogen free: yes
Rated current: 20 A
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Pollution degree: 3
Closing plate required: yes
Type of insulation material: thermoplastic
Length: 57 mm
Width: 6.1 mm
Height: 36.5 mm
Connection type 1: plug-in connection
Minimum cross section solid: 0.2 mm²
Maximum cross section solid: 6 mm²
Minimum cross section fine stranded: 0.2 mm²
Maximum cross section fine stranded: 4 mm²
Minimum conductor cross section (flexible, stranded) with cable end sleeve: 0.25 mm²
Maximum conductor cross section (flexible, stranded) with cable end sleeve: 4 mm²
Wire strip length: 12 mm
Cross section UL: 24-10 AWG
Voltage UL: 300 V
Current factory wiring: 20 A
Current field wiring: 20 A
Cross section CSA: 24-10 AWG
Voltage CSA: 300 V
Current CSA: 20 A

SKU WIE-5D.204.4155.0
MPN 5D.204.4155.0
EAN 4049088718960
