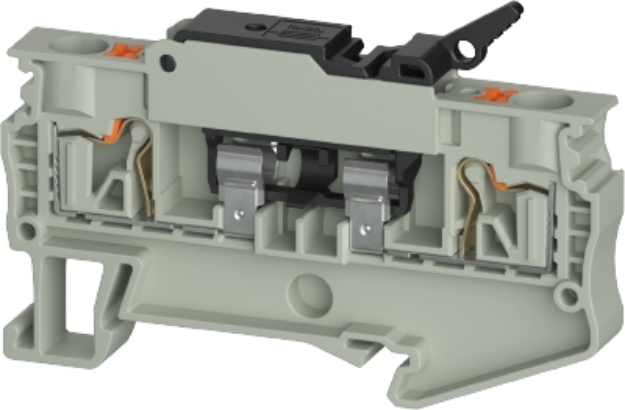

Push Fuse Terminal WTPN 4 FSIL 5X20

Fuse Terminal WTPN 4 FSIL 5X20

Technical Details

• Nominal cross section: 4 mm²
• Color: black
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 8 mm
• Insulating housing: PA
• Inflammability class according to UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-In connection//true
• Halogen free: yes
• Rated current: 6.3 A
• Rated voltage: 500 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Insulation material type: thermoplastic
• Length: 67.3 mm
• Width: 8 mm
• Height: 45.7 mm
• Connection type 1: plug-in connection
• Minimum solid cross section: 0.2 mm²
• Maximum solid cross section: 4 mm²
• Minimum fine-stranded cross section: 0.2 mm²
• Maximum fine-stranded cross section: 4 mm²
• Minimum flexible stranded conductor cross section with cable end sleeve: 0.25 mm²
• Maximum flexible stranded conductor cross section with cable end sleeve: 4 mm²
• Wire strip length: 12 mm
• UL cross section: 24-10 AWG
• UL voltage: 300 V
• Factory-wiring current: 6.3 A
• Field-wiring current: 6.3 A
• CSA cross section: 24-10 AWG
• CSA voltage: 300 V
• CSA current: 6.3 A

SKU WIE-5D.204.4455.0
MPN 5D.204.4455.0
EAN 4049088718991
