SCREENED DATA DRAGCHAIN 10x0.14

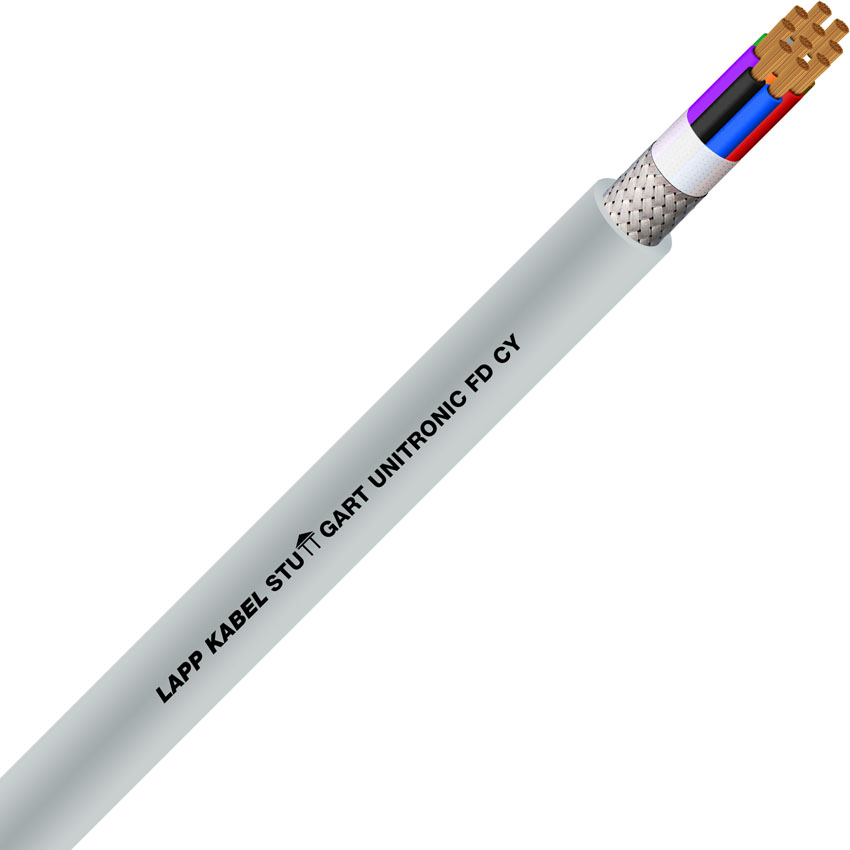

UNITRONIC® FD CY, Screened, highly flexible for dragchain use, 10x0.14

$9.67

(Per/m excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-0027416 Manufacturer part number: 0027416 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Well-proven and reliable
  • Optimized cable construction for power chain use
  • Cost-effective solution
  • Overall braid minimises electrical
    interference

Application range

  • Automated production processes require data transmission cables that offer high flexibility and durability, as well as excellent screening
  • Suitable for use in measuring, control and regulating circuits
  • Assembly lines, production lines, in all kinds of machines

Product features

  • Low-adhesive surface
  • Flame-retardant according IEC 60332-1-2
  • Designed for 2 up to 8 million bending/unbending cycles in power chain applications

Norm references / Approvals

  • Based on VDE 0812
  • For travel distances up to 10 m.
  • For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

  • Extra-fine wire strand made of bare copper wires
  • Core insulation made of PVC
  • Non-woven wrapping
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: grey (RAL 7001)

Temperature range

  • Flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C




SKU
LAPP-0027416
