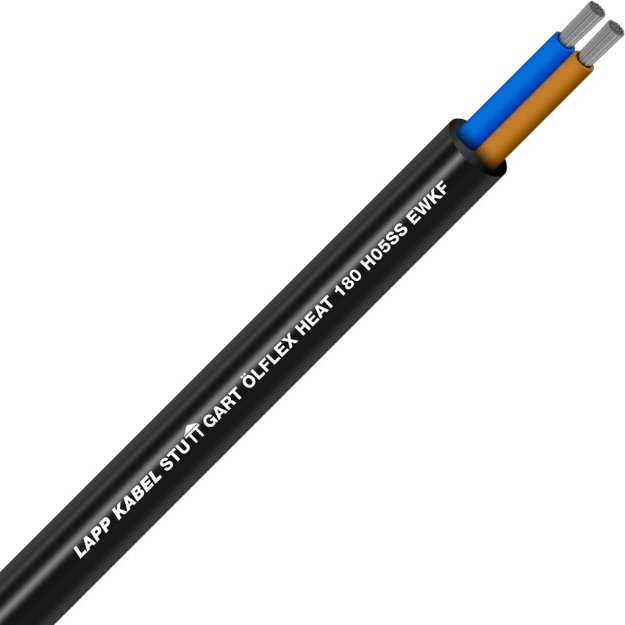

ÖLFLEX® HEAT 180 H05SS-F EWKF, -50°C to +180°C, Europe-wide standardised, silicone sheath, 2X0.75 (No Earth)

Free shipping on Web orders over $100

$6.49
(Per/m excl GST)
Global Stock
Quantity Breaks
1+
100+
500+
$6.49
$6.49
$6.49
SKU: LAPP-0046900 Manufacturer part number: 0046900

Benefits

  • Harmonised use in Europe
  • Notch and tear-resistant silicone compounds reduce damage due to mechanical stress
  • For harsh environments, more durable than conventional H05SS-F standardised cables
  • Flexibility simplifies installation where space is limited
  • Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

  • Areas with high ambient temperatures and occasionally mechanical stress
  • Typical fields of application
    - Steel, ceramic and iron works
    - Bakery equipment and industrial furnaces
    - Electric motor industry
    - Sauna/solarium construction
    - Thermal and heating elements
    - Lighting technology
    - Ventilator engineering
    - Air-conditioning technology
    - Galvanisation technology

Product features

  • EWKF:
    Initial tear propagation and notch resistance
  • Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
  • Good hydrolysis and UV-resistance
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

  • EN 50525-2-83 (H05SS-F)

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: based on EWKF silicone
  • Cores twisted together
  • Outer sheath: silicone-based EWKF, notch-resistant, black

Temperature range

  • -50 °C to +180 °C
    (adequate ventilation required)

SKU
LAPP-0046900
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 2
Conductor Size 0.75mm
Colour Black
*
*
*
