Screened Multi-Standard UL/CSA 2XAWG18

Benefits

• Wide application range due to multiple certifications
• Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)

Application range

• Control and signal cables for internal and external wiring
• For the North American market
• On the basis of CMG, PLTC or ITC direct laying on cable tray in the USA, in conjunction with -ER (Exposed Run) for unprotected transition sections with a length of not more than 6 ft. each
• Thanks to the DIRECT BURIAL approval, direct burial of versions with the nominal conductor cross sections 18 AWG and 16 AWG is normatively permitted in the USA
• Torsion resistant up to ±150 °/m for the drip loop of wind turbine generators

Product features

• Oil-resistant according to UL OIL RES I
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Norm references / Approvals

• USA: (UL) CMG [E130334], (UL) PLTC-ER (18 AWG + 16 AWG) [E216027], (UL) PLTC (>24 AWG) [E216027], (UL) ITC-ER (18 AWG + 16 AWG) [E196134], UL AWM Style 2464 [E100338], DIR BUR (18 AWG + 16 AWG)
• CAN: c(UL) CMG FT4 [E130334], CSA AWM I/II A/B FT1

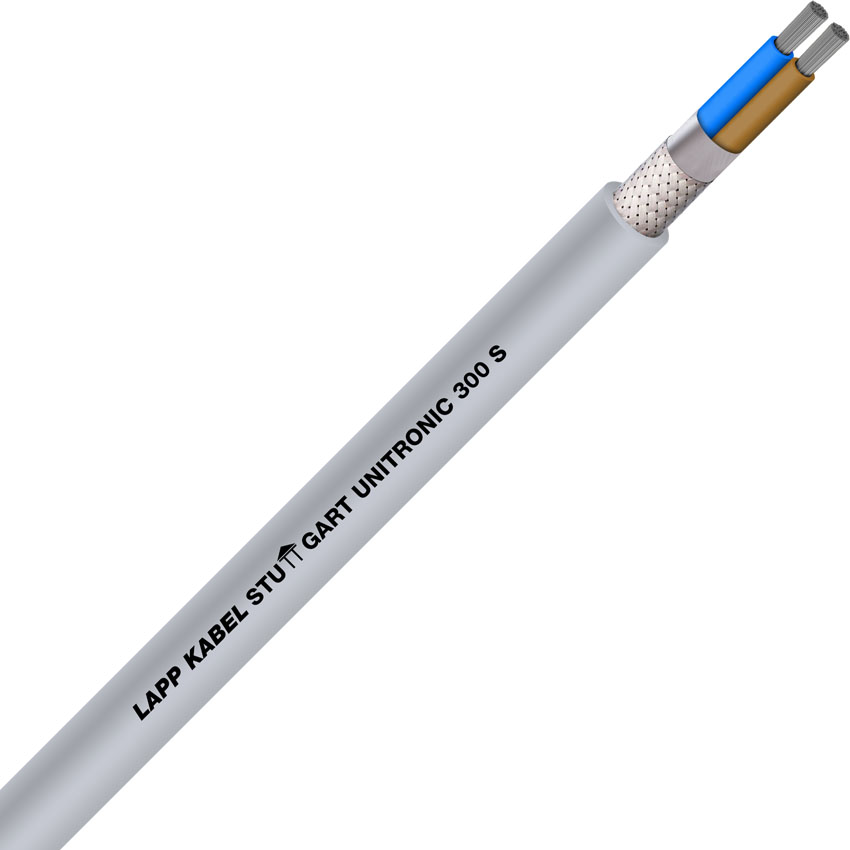

Product Make-up

• Fine-wire strand made of tinned-copper wires
• Core insulation made of PVC compound
• UNITRONIC® 300 S: with overall foil tape wrapping, drain wire,
  tin-plated copper braiding (75 % coverage)
• Outer jacket: Specially Formulated PVC
• Color of the outer jacket: Dark gray (similar to RAL 7005)

Temperature range

• Occasional flexing/ North America: -25°C to +105°C (AWM for USA: +80°C)
• Fixed installation/ North America: -40°C to +105°C (AWM for USA: +80°C)

Nominal voltage

• according to UL: 300 V
  IEC: not for power transmission
