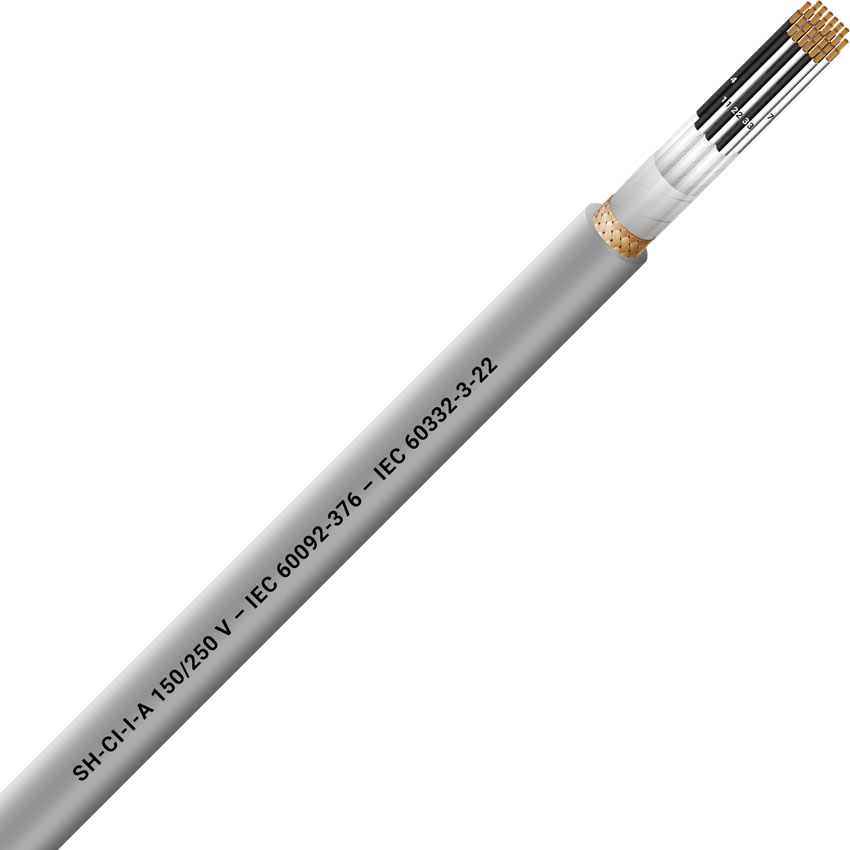

Armoured Individually Screened 14x2x0.50 Grey

SH-CI-I-A

Control and instrumentation, individually screened, armoured shipboard cables rated 150/250V (300V)

The SH-CI-I-A cables are designed for control and instrumentation applications in shipboard environments. These cables feature individual screening for each core/unit, providing excellent signal integrity and minimizing interference. The armouring adds mechanical protection, making them suitable for demanding installations. They are rated for 150/250V (300V) and are manufactured to comply with relevant IEC standards for safety and performance.

Technical Data

• General
  • Application: Control and instrumentation, shipboard
  • Voltage Rating: 150/250V (300V)
• Conductor
  • Material: Bare (optional tinned) copper
  • Class: Class 5 according to IEC 60228
• Insulation
  • Material: HF XLPE compound according to IEC 60092-360
  • Thickness: According to IEC 60092-376
• Core Identification
  • Pair: Black, white with numbers 1-1, 2-2, 3-3, …
  • Triple: Black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, …
  • Quad: Black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
• Core Assembly
  • Unit Formation: Pairs, triples, or quads
  • Single Core Assembly: Each core assembled forming pairs or triples or quads (unit)
• Individual Screen
  • Type: Aluminium/polyester tape with drain wire (optional bare or tinned copper wire braid)
• Unit Assembly
  • Process: Each unit assembled with fillers and non-hygroscopic tapes
• Taping
  • Type: Non hygroscopic tape(s)
• Armouring
  • Material: Bare copper (upon request tinned copper or galvanized steel wire braid)
  • Coverage: Minimum 90%
• Outer Sheath
  • Material: Compound SHF1 according to IEC 60092-360
  • Thickness: According to IEC 60092-376
  • Colour: Grey (or other colour agreed)
  • Outer Diameter: According to IEC 60092-350 annex D
• Marking
  • Marking Text: UNIKA (Italy) – SH-CI-I-A 150/250V 90°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – traceability code
• Temperature Ratings
  • Fixed Installation: 90°C
  • Minimum Installation: -15°C
• Minimum Bending Radius
  • Radius: 6D (D is the overall diameter of the cable)
• Fire Behaviour
  • IEC 60332-3-22: Not fire propagation
  • IEC 60332-1-2: Not flame propagation
  • IEC 60754-1: Halogen content
  • IEC 60754-2: pH and conductivity
  • IEC 60684-2: Fluorine content
  • IEC 61034: Smoke emission

SKU LAPP-NBW05
MPN NBW05
