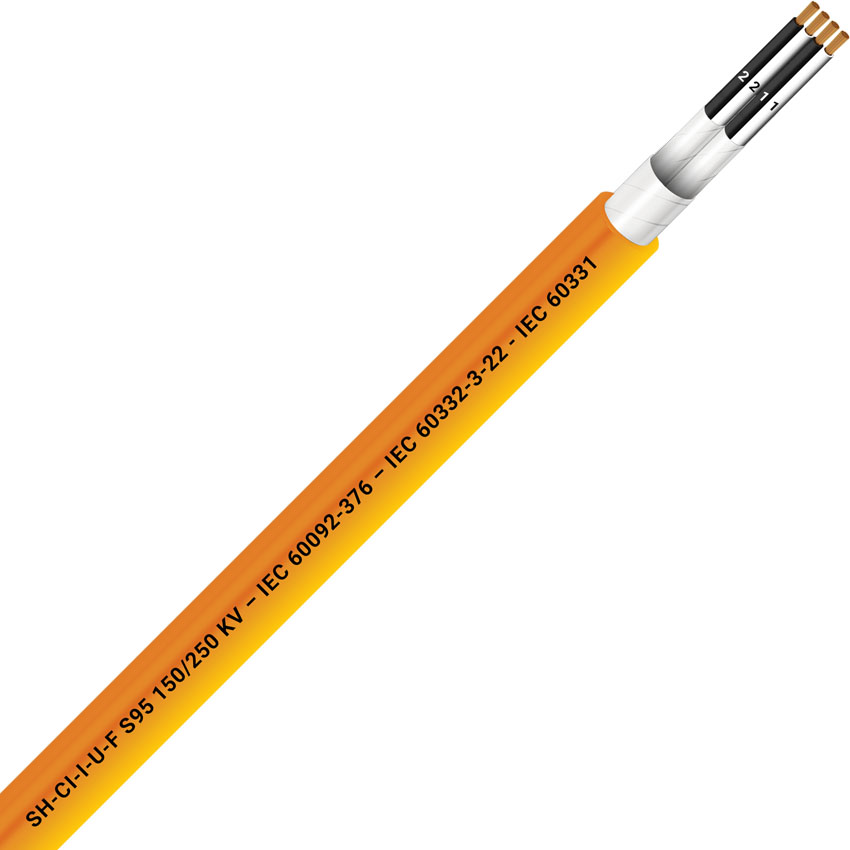

Unarmoured Individually & Overall Screened 2x2x0.50 Orange

SH-CI-I-U-F S95 2x2x0.50 Orange RAL2003

$9.17

(Per/m excl GST)
On Request
Select or Type Quantity
SKU: LAPP-NC2C4S Manufacturer part number: NC2C4S Price breaks available:

Free shipping on Web orders over $100

SH-CI-I-U-F S95

Control and instrumentation, individually screened, unarmoured, fire resisting shipboard cables rated 150V/250V

SH-CI-I-U-F S95 cables are designed for control and instrumentation applications in shipboard environments. They feature individual screening for each core/unit to minimize interference, are unarmoured for flexibility, and provide excellent fire resistance. These cables are rated for 150V/250V.

Technical Data

  • Conductor: Bare (optional tinned copper) class 5 according to IEC 60228
  • Insulation: Silicon compound S95 according to IEC 60092-360. Thickness according to IEC 60092-376
  • Core Identification (Preferential): Pairs: black, white with numbers 1-1, 2-2, 3-3, … Triples: black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, … Quads: black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
  • Single Core Assembly: Each core assembled forming pairs or triples or quads (unit)
  • Individual Screen: Aluminium/polyester tape with drain wire (optional bare or tinned copper wire braid) on each unit
  • Unit Assembly: All cores or units assembled in round formation with suitable fillers and non hygroscopic tape(s)
  • Outer Sheath: SHF1 compound according to IEC 60092-360. Thickness according to IEC 60092-376. Colour: orange (or other colour agreed). Outer diameter according to IEC 60092- 350 annex D
  • Marking (Cable diameter > 20mm): UNIKA (Italy) – SH-CI-I-U-F S95 150/250 V 95°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-1 – traceability code
  • Marking (Cable diameter ≤ 20mm): UNIKA (Italy) – SH-CI-I-U-F S95 150/250 V 95°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-2 – traceability code
  • Rated Conductor Temperature (Fixed Installation): 90°C
  • Minimum Installation Temperature: -15 °C
  • Minimum Bending Radius: 6D: D is the overall diameter
  • Fire Behaviour:
    • IEC 60332-3-22 not fire propagation
    • IEC 60332-1-2 not flame propagation
    • IEC 60331-21, IEC 60331-1 (2) fire resistant
    • IEC 60754-1 halogen content
    • IEC 60754-2 pH and conductivity
    • IEC 60684-2 fluorine content
    • IEC 61034 smoke emission



SKU LAPP-NC2C4S
MPN NC2C4S

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 4
Conductor Size 0.5mm
Number of Pairs 2
Colour Orange
Product Files
Type Name
SH-CI-I-U-F S95
Datasheet
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

SH-CI-I-U-F S95

Control and instrumentation, individually screened, unarmoured, fire resisting shipboard cables rated 150V/250V

SH-CI-I-U-F S95 cables are designed for control and instrumentation applications in shipboard environments. They feature individual screening for each core/unit to minimize interference, are unarmoured for flexibility, and provide excellent fire resistance. These cables are rated for 150V/250V.

Technical Data

  • Conductor: Bare (optional tinned copper) class 5 according to IEC 60228
  • Insulation: Silicon compound S95 according to IEC 60092-360. Thickness according to IEC 60092-376
  • Core Identification (Preferential): Pairs: black, white with numbers 1-1, 2-2, 3-3, … Triples: black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, … Quads: black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
  • Single Core Assembly: Each core assembled forming pairs or triples or quads (unit)
  • Individual Screen: Aluminium/polyester tape with drain wire (optional bare or tinned copper wire braid) on each unit
  • Unit Assembly: All cores or units assembled in round formation with suitable fillers and non hygroscopic tape(s)
  • Outer Sheath: SHF1 compound according to IEC 60092-360. Thickness according to IEC 60092-376. Colour: orange (or other colour agreed). Outer diameter according to IEC 60092- 350 annex D
  • Marking (Cable diameter > 20mm): UNIKA (Italy) – SH-CI-I-U-F S95 150/250 V 95°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-1 – traceability code
  • Marking (Cable diameter ≤ 20mm): UNIKA (Italy) – SH-CI-I-U-F S95 150/250 V 95°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-2 – traceability code
  • Rated Conductor Temperature (Fixed Installation): 90°C
  • Minimum Installation Temperature: -15 °C
  • Minimum Bending Radius: 6D: D is the overall diameter
  • Fire Behaviour:
    • IEC 60332-3-22 not fire propagation
    • IEC 60332-1-2 not flame propagation
    • IEC 60331-21, IEC 60331-1 (2) fire resistant
    • IEC 60754-1 halogen content
    • IEC 60754-2 pH and conductivity
    • IEC 60684-2 fluorine content
    • IEC 61034 smoke emission



SKU LAPP-NC2C4S
MPN NC2C4S

Products specifications
Attribute name Attribute value
Number of Conductors 4
Conductor Size 0.5mm
Number of Pairs 2
Colour Orange
