Submersible Screened Tinned Rubber 4G4

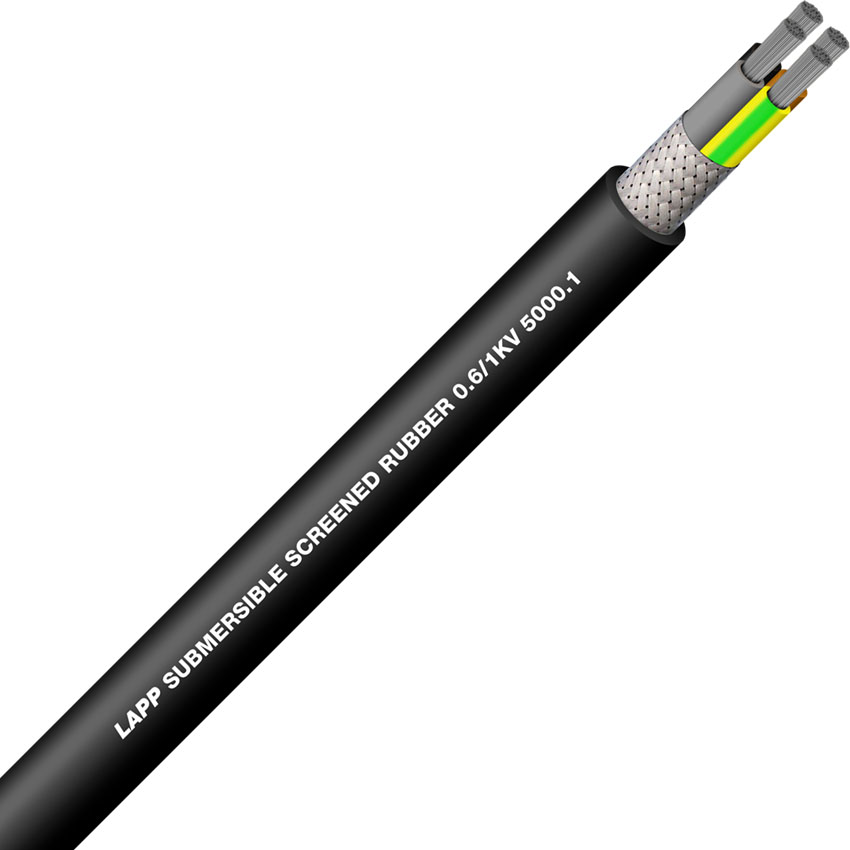

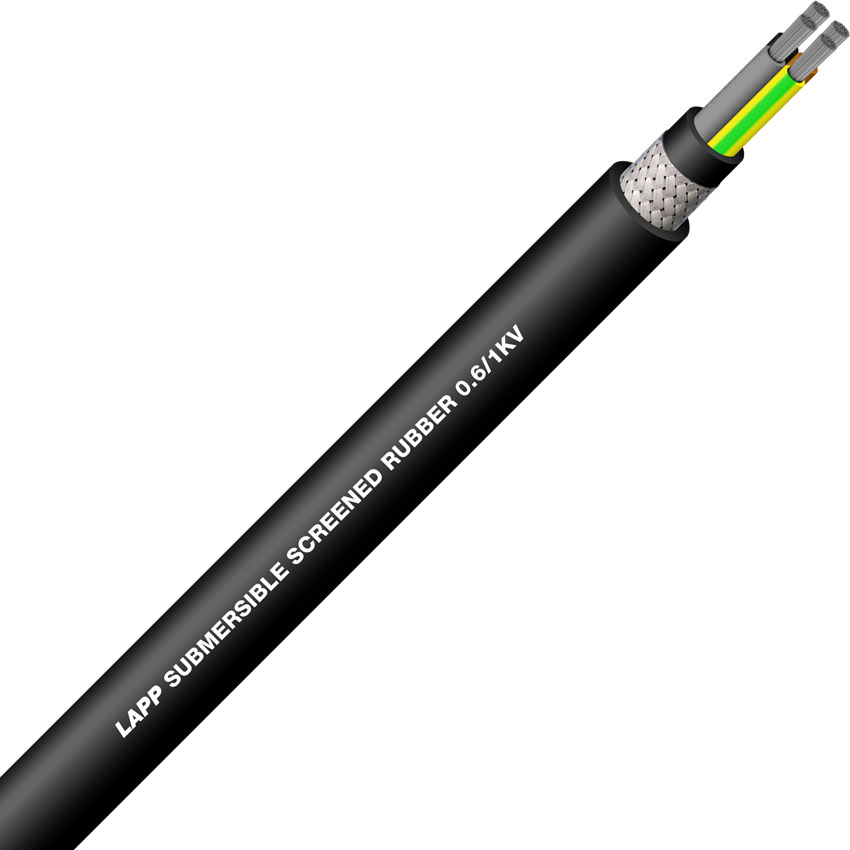

TCu/R-EP-90/TCu/GP-90-CPE is a submersible screened rubber cable from LAPP designed for demanding industrial and underwater applications. Built with tinned copper conductors, rubber insulation, copper braid screening and a robust CPE outer sheath. Suitable for power supply in wet, submerged and mechanically demanding environments. Manufactured based on EN 50525-2-21 and compliant with relevant EU directives.

Benefits

• Submersible design suitable for installation at depths up to 500 meters.
• Tinned copper braid screening with minimum 70% coverage for improved electromagnetic protection.
• Oil resistant according to EN 50363-2-1 (TM54).
• UV resistant according to EN 50525-1 (black sheath).
• Flame retardant according to IEC 60332-1-2.
• Flexible installation with small bending radius for both fixed and occasional flexing applications.
• Wide temperature range for harsh operating conditions.
• Compliant with Low Voltage Directive 2014/35/EU and RoHS Directive 2011/65/EU.

Technical Details

• Reference standard: Based on EN 50525-2-21.
• Conductor: Fine strands of tinned annealed copper according to IEC 60228 Class 5.
• Core insulation: R-EP-90 according to AS/NZS 3808 and EI4 according to EN 50363-1.
• Screening: Tinned copper wire braid with minimum 70% coverage.
• Outer sheath: GP-90-CPE according to AS/NZS 3808 and EM2 according to EN 50363-2-1.
• Sheath colour: Black (RAL 9005).
• Rated voltage: 450/750 V and 600/1000 V depending on standard reference.
• Test voltage: 3.5 kV AC.
• Temperature range: -15°C to +90°C for occasional flexing and -40°C to +90°C for fixed installation.
• Minimum bending radius: 8 x cable diameter for occasional flexing and 3 x cable diameter for fixed installation.

SKU LAPP-810001151
MPN 810001151
