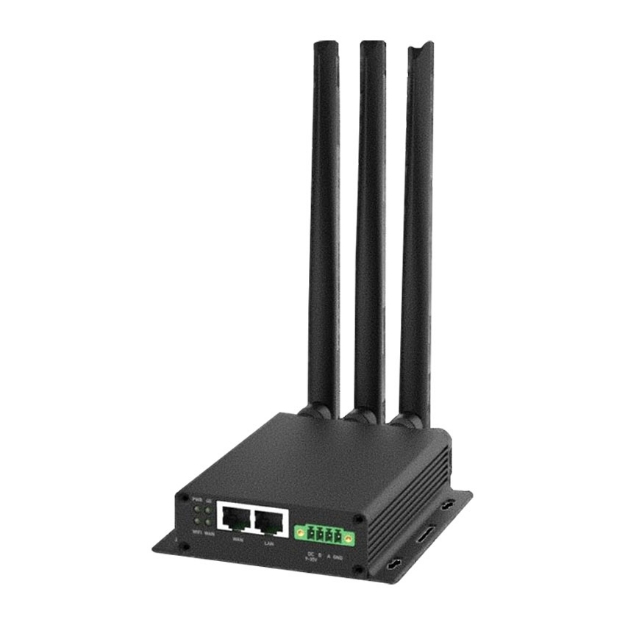

TOSIBOX Lock 175

Cost-effective Plug & GoTM connectivity device

TOSIBOX® 175 is ideal for demanding industry sectors that require an all-in-one solution that is compact, able to handle all environments and suited to global market usage. The 4G module and external 4G antenna provides stable Internet access, so the node can be easily configured anywhere.

Main features

Performance

• High VPN throughput, end-to-end encryption between TOSIBOX® devices, users and servers

Reliability

• Integrated WiFi as connectivity method or access point for wireless devices on site

• Built-in global LTE modem – no external modem needed

• TosiOnline™ automatic reconnection of dropped connections

Industrial design

• Robust and fanless enclosure, DIN rail attachment

Connections

• 9-35V DC

• 1 x WiFi antenna connector, RP-SMA Male

• 1 x LTE antenna connector, SMA Female

• DIN rail attachment (back)

• Maximum power consumption 10W

Connection features

• Independent of operating systems

• Works in all Internet connections (operator independent)

• Firewall friendly

• Works with dynamic, static and private IP addresses

• Built-in firewall, NAT

• Up to 10 concurrent VPN connections

• VPN throughput up to 10 Mbit/s

• TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems

Included accessories

• RJ-45 Cat5e Ethernet cable

• 1 x LTE antenna

• 1 x WiFi antenna

• DIN rail mount

• Power supply unit

• AC adapter - Input 100 – 240 V AC, frequency 50/60Hz 0,3A, Output 12.0 V, 1.0 A, max 12.0 W. EU, UK, AU and US power socket

Physical properties

• 104 mm x 28 mm x 110 mm / 4.09” x 1.10” x 4.33” (L x W x H)

• Storage temperature -30 °C … +70 °C / -22 °F … +158 °F

• Protection class IP30 • Weight 305 g / 0.67 lbs (net weight article)

• Operating temperature -20 °C … +55 °C / -4 °F … +131 °F
