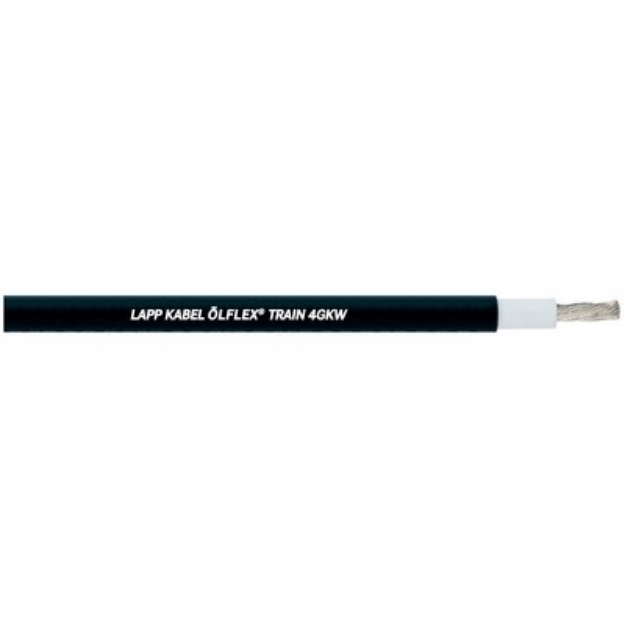

Train 4Gkw 1X4 Green-Yellow

Benefits

• High flexibility and slim diameters enable small bending radii at fixed installation
• Resistant to mechanical influences in harsh environmental conditions
• Expanded temperature range
• Excellent chemical resistance and high Flammability rating as well
• Reduced formation of toxic gases and fire spreading in the event of fire increase the protection against damage to persons and property

Application range

• For fixed and protected installations inside or outside of railed vehicles and busses
• For connection of stationary and moving parts
• Suitable for cabling of switchboards, converters, panel units and rheostatic braking blocks

Product features

• Halogen-free (IEC 60754-1) & No corrosive gases (IEC 60754-2)
• No toxic gases (EN 50305, BS 6853)
• Low smoke density (IEC 61034-2)
• Flame retardant (IEC 60332-1-2)
• No fire spreading (EN 50305, BS6853)

Norm references / Approvals

• EN 50264-3-1, type M
• BS 6853 ( Interior use Ia, Ib,Ⅱ & Exterior use Ia, Ib,Ⅱ)
• EN 45545-2 HL1, HL2, HL3
• Compliant with NFPA 130

Product Make-up

• Conductor : Tinned copper strand, fine wired
• Inner Insulation : Electron beam cross-linked polyolefin copolymer, Natural colour
• Outer Insulation : Electron beam cross-linked polyolefin copolymer
• Outer Insulation colour : Black or green-yellow
