UL Flex 2X1.5

Benefits

• Many certifications/ use types
• Cost-saving, fast installation omitting protection systems

Application range

• Industrial machinery; plant engineering
• Compliant with Tool machines: (UL) MTW
• Unprotected 600V operation on cable tray in the USA, incl. 6 ft. Exposed Run laying sections
• Generatori Eolici in USA: (WTTC) Wind Turbine Tray Cable

Product features

• Flame-retardant according to CSA FT4
  UL Vertical-Tray Flame Test
• Oil-resistant according to UL OIL RES I & II
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
• Technically resistant to sunlight and ozone

Norm references / Approvals

• USA: (UL) TC [E171371], -ER > 2 conductors, (UL) MTW [E155920], (UL) WTTC [E323700], (UL) THHN/THWN (> 1.5 mm²/16 AWG) [E172162], UL AWM Style 20886 [E100338]
• Sunlight Resistant (Sun. Res.), Direct Burial (Dir. Bur.), Submersible Pump Cable (> 1.5 mm²/16 AWG, and < 8 conductors), (UL) PLTC (< 6 mm²/10 AWG) [E216027], (UL) ITC (< 6 mm²/10 AWG) [E196134], (UL) DP-1 [E233406]
• UL OIL RES I/ II, 75°C WET, 90°C DRY, NEC/NFPA 70, NFPA 79
• CAN: c(UL) CIC/ TC 600V FT4 [E171371], CSA AWM I/II A/B FT1

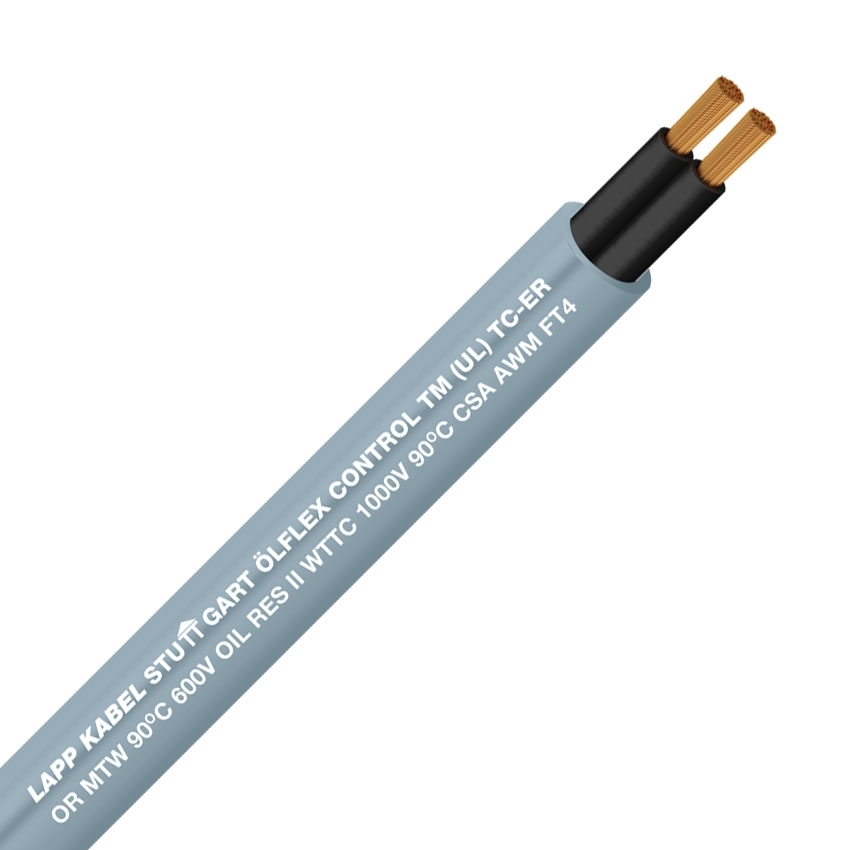

Product Make-up

• Fine-wire strand made of bare copper wires
• Insulation: PVC with nylon sheath (PA skin)
• Outer jacket: Specially formulated thermoplastic polymer
• Color of the outer jacket: Gray
