+180°C Harsh Conditions 4G2.5

Name: +180°C Harsh Conditions 4G2.5
SKU: LAPP-00465223
Price: 25.50 AUD
Availability: InStock

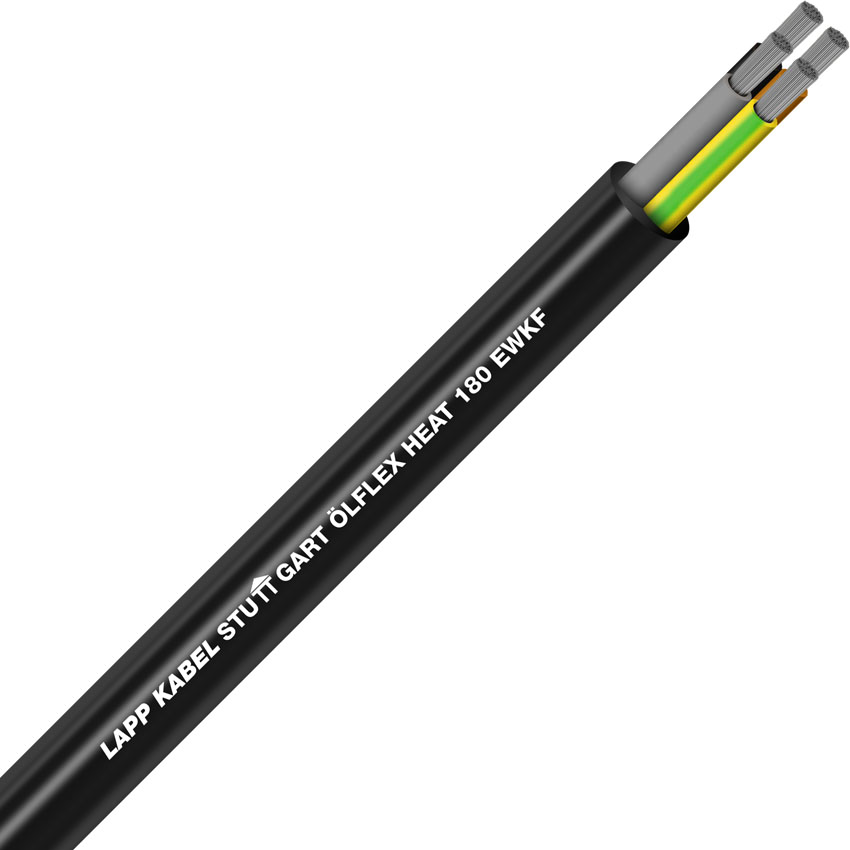

ÖLFLEX® HEAT 180 EWKF, -50°C to +180°C, EWKF silicone sheath for harsh applications, halogen-free (coloured-cores) 4G2.5 (3 + E)

$25.50 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-00465223 Manufacturer part number: 00465223 Price breaks available:

Select or Type Quantity

SKU: LAPP-00465223 Manufacturer part number: 00465223 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Benefits

Longer durability in harsh applications than conventional silicone cables
Notch and tear-resistant silicone compounds reduce damage due to mechanical stress
Due to the use of special additives in EWKF silicone, armoured cable versions will not be required
Flexibility simplifies installation where space is limited
Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

Areas with high ambient temperatures and occasionally mechanical stress
Typical fields of application
- Steel, ceramic and iron works
- Bakery equipment and industrial furnaces
- Electric motor industry
- Sauna/solarium construction
- Thermal and heating elements
- Lighting technology
- Ventilator engineering
- Air-conditioning technology
- Galvanisation technology

Product features

EWKF:
Initial tear propagation and notch resistance
Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
Good hydrolysis and UV-resistance
Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

Based on EN 50525-2-83

Product Make-up

Fine-wire, tinned-copper conductor
Core insulation: based on EWKF silicone
Cores twisted together
Outer sheath: silicone-based EWKF, notch-resistant, black

Temperature range

-60 °C to +180 °C
(adequate ventilation required)

SKU

LAPP-00465223

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	4
Conductor Size	2.5mm
Colour	Black

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 187
