+180°C High-Voltage 1X1

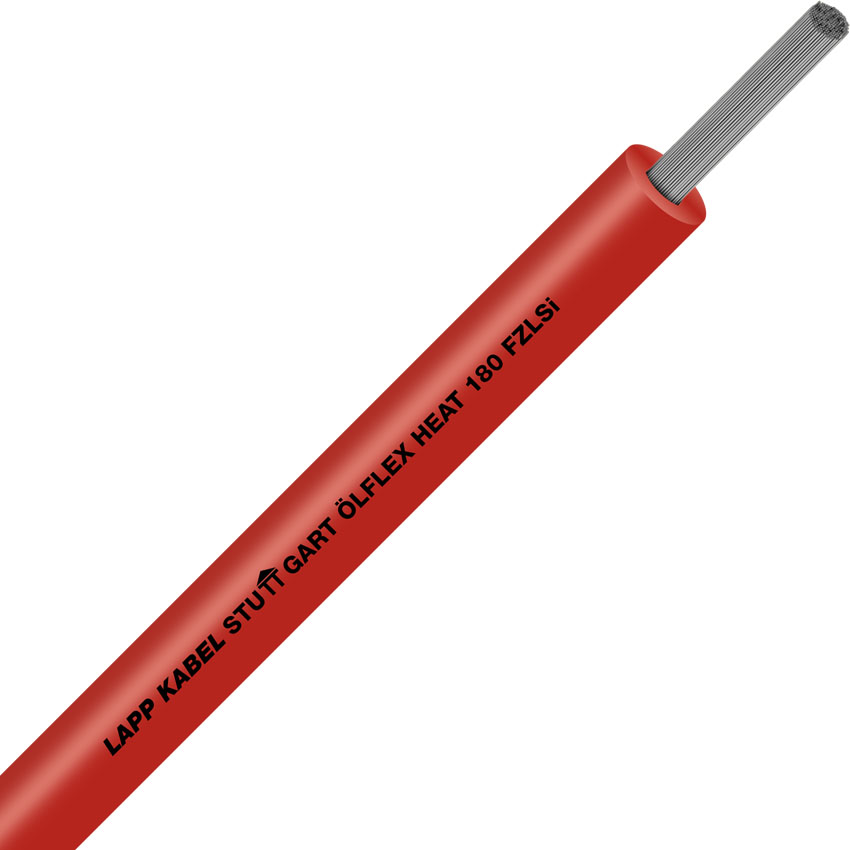

ÖLFLEX® HEAT 180 FZLSi, -50°C to +180°C, red silicone insulation, 10 kV high-voltage, halogen-free 1X1

Free shipping on Web orders over $100

$649.00
(100m excl GST)
Global Stock
Quantity Breaks
1+
5+
25+
$649.00
$649.00
$649.00
SKU: LAPP-2510001 Manufacturer part number: 2510001

Benefits

  • Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

  • Areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while
  • Typical fields of application
    - Control cabinet manufacturing
    - Appliances and apparatus engineering
    - Electric motor industry
    - Sauna/solarium construction
    - Thermal and heating elements
    - Lighting technology
    - Ventilator engineering
    - Air-conditioning technology
    - Furnace construction
    - Polymer processing
    - Generator and transformer manufacturing
  • ÖLFLEX® HEAT 180 SiZ is suitable as electrical sensor cable in pipe systems for modern solar hot water systems

Product features

  • Halogen-free according to IEC 60754-1
    (amount of halogen acid gas)
    Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
  • Flame-retardant according IEC 60332-1-2
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

  • Increased voltage rating is not subject to theLow Voltage Directive 2014/35/EU

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Silicone-based insulation
  • Colour of core insulation: red

Temperature range

  • -50 °C to +180 °C
    (adequate ventilation required)
  • Short-term: +200°C

SKU
LAPP-2510001
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in NZ Only Show Stocked Items
Number of Conductors 1
Conductor Size 1mm
Colour Red
*
*
*
