+180°C High-Voltage 1X1.5

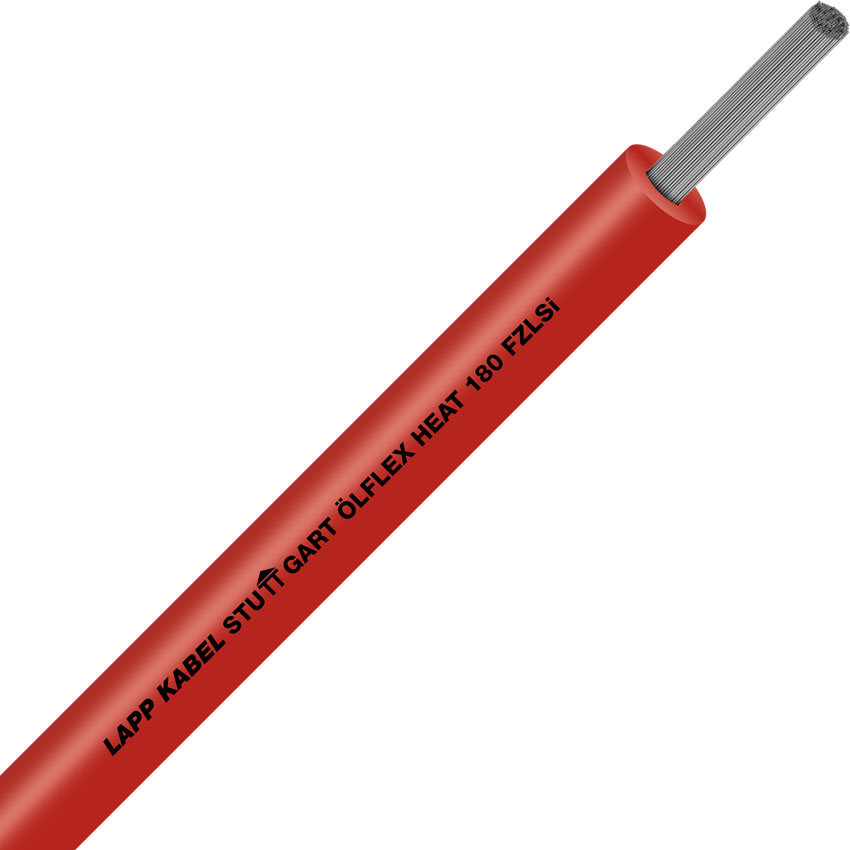

ÖLFLEX® HEAT 180 FZLSi, -50°C to +180°C, red silicone insulation, 10 kV high-voltage, halogen-free 1X1.5

Free shipping on Web orders over $100

$855.00

(100m excl GST)

Global Stock

Quantity Breaks

25+

$855.00

SKU: LAPP-2510005 Manufacturer part number: 2510005

Qty:

Overview
Specifications
Contact Us
Downloads

Benefits

Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

Areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while
Typical fields of application
- Control cabinet manufacturing
- Appliances and apparatus engineering
- Electric motor industry
- Sauna/solarium construction
- Thermal and heating elements
- Lighting technology
- Ventilator engineering
- Air-conditioning technology
- Furnace construction
- Polymer processing
- Generator and transformer manufacturing
ÖLFLEX^® HEAT 180 SiZ is suitable as electrical sensor cable in pipe systems for modern solar hot water systems

Product features

Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
Flame-retardant according IEC 60332-1-2
Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

Increased voltage rating is not subject to theLow Voltage Directive 2014/35/EU

Product Make-up

Fine-wire, tinned-copper conductor
Silicone-based insulation
Colour of core insulation: red

Temperature range

-50 °C to +180 °C
(adequate ventilation required)
Short-term: +200°C

SKU

LAPP-2510005

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	1
Conductor Size	1.5mm
Colour	Red
