Previous+180°C Harsh Conditions 16G...
Next+180°C Silicone Halogen-Fre...

+180°C Screened Multi-Standard 18G1.5

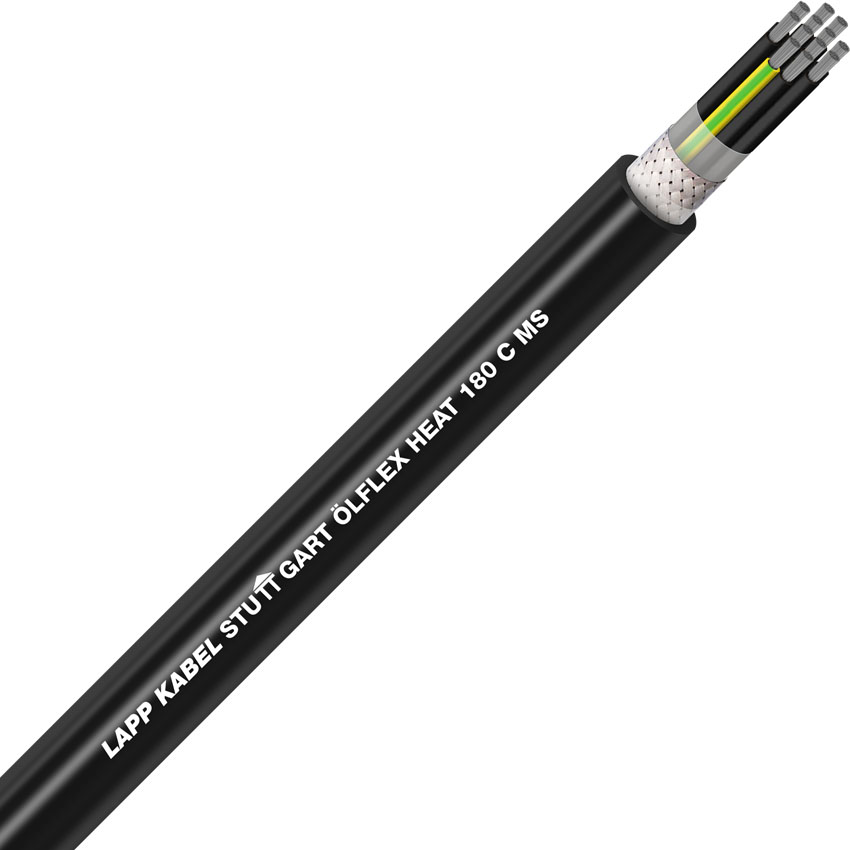

ÖLFLEX® HEAT 180 C MS, -50°C to +180°C, UL/cUL up to +150°C, multi-standard halogen-free (number-coded) 18G1.5 (17 + E)

$95.70

(Per/m excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-0046723 Manufacturer part number: 0046723 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers
  • Thicker cable design meets the requirements of the FT-1 flame test and also approved for the external interconnection of apparatuses and appliances
  • Flexibility simplifies installation where space is limited
  • Copper braiding screens the cable against
    electromagnetic interference

Application range

  • Areas with high ambient temperatures where insulating and sheath materials of conventional cables will embrittle after a short while
  • Typical fields of application
    - Steel, ceramic and iron works
    - Bakery equipment and industrial furnaces
    - Electric motor industry
    - Sauna/solarium construction
    - Thermal and heating elements
    - Lighting technology
    - Ventilator engineering
    - Air-conditioning technology
    - Galvanisation technology

Product features

  • Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2)
  • Flame-retardant acc. to IEC 60332-1-2, Cable Flame Test, CSA FT 1
  • Good hydrolysis and UV-resistance
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

  • UL AWM 4476 and cUL AWM II A/B
    Construction B, External wiring
  • UL File No. E63634

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Silicone-based core insulation
  • Cores twisted together
  • Tinned-copper screen braiding,
    interleaved plastic foil wrapping
  • Silicone-based outer sheath,
    colour black

Temperature range

  • According to VDE: -60 °C to +180 °C
  • UL/cUL: up to +150°C
    (adequate ventilation required)

SKU
LAPP-0046723
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 18
Conductor Size 1.5mm
Colour Black
*
*
*
