Name: +180°C Screened Multi-Standard 2X1.0
SKU: LAPP-0046708
Price: 17.00 AUD
Availability: InStock

ÖLFLEX® HEAT 180 C MS, -50°C to +180°C, UL/cUL up to +150°C, multi-standard halogen-free (colour-coded) 2X1.0 (No Earth)

$17.00 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-0046708 Manufacturer part number: 0046708 Price breaks available:

Select or Type Quantity

SKU: LAPP-0046708 Manufacturer part number: 0046708 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Benefits

Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers
Thicker cable design meets the requirements of the FT-1 flame test and also approved for the external interconnection of apparatuses and appliances
Flexibility simplifies installation where space is limited
Copper braiding screens the cable against
electromagnetic interference

Application range

Areas with high ambient temperatures where insulating and sheath materials of conventional cables will embrittle after a short while
Typical fields of application
- Steel, ceramic and iron works
- Bakery equipment and industrial furnaces
- Electric motor industry
- Sauna/solarium construction
- Thermal and heating elements
- Lighting technology
- Ventilator engineering
- Air-conditioning technology
- Galvanisation technology

Product features

Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2)
Flame-retardant acc. to IEC 60332-1-2, Cable Flame Test, CSA FT 1
Good hydrolysis and UV-resistance
Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

UL AWM 4476 and cUL AWM II A/B
Construction B, External wiring
UL File No. E63634

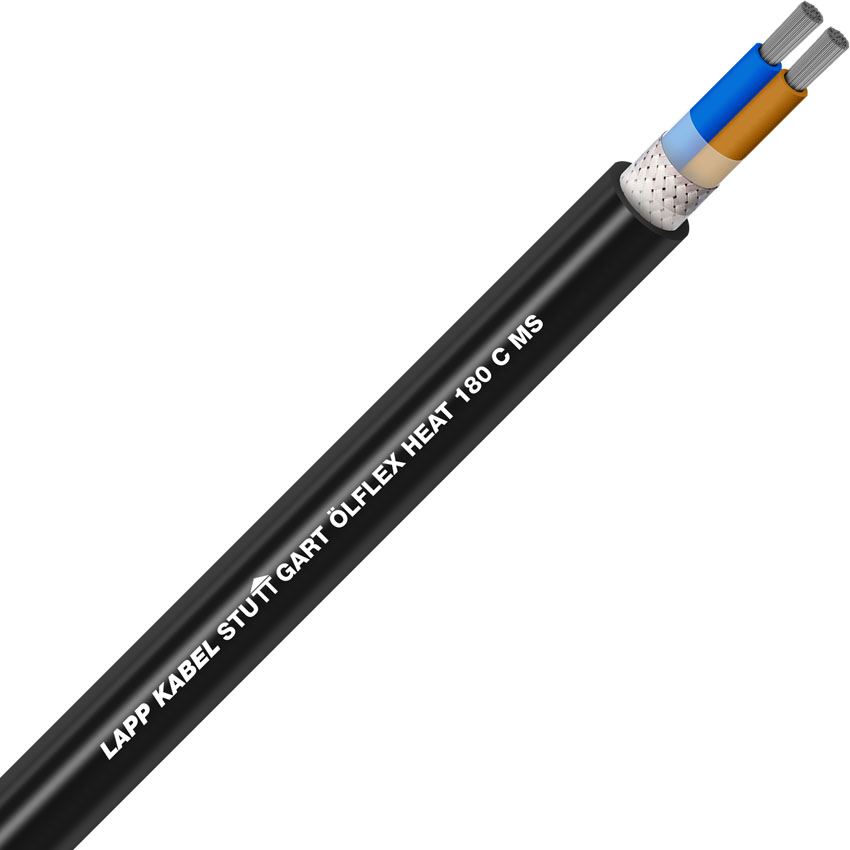

Product Make-up

Fine-wire, tinned-copper conductor
Silicone-based core insulation
Cores twisted together
Tinned-copper screen braiding,
interleaved plastic foil wrapping
Silicone-based outer sheath,
colour black

Temperature range

According to VDE: -60 °C to +180 °C
UL/cUL: up to +150°C
(adequate ventilation required)

SKU

LAPP-0046708

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	2
Conductor Size	1mm
Colour	Black
