+180°C Silicone Halogen-Free 3G4

Benefits

• Flexibility simplifies installation where space is limited
• Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

• Areas with high ambient temperatures where insulating and sheath materials of conventional cables will embrittle after a short while
• Typical fields of application
  - Steel, ceramic and iron works
  - Bakery equipment and industrial furnaces
  - Electric motor industry
  - Sauna/solarium construction
  - Thermal and heating elements
  - Lighting technology
  - Ventilator engineering
  - Air-conditioning technology
  - Galvanisation technology

Product features

• Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
• Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

• Based on EN 50525-2-83

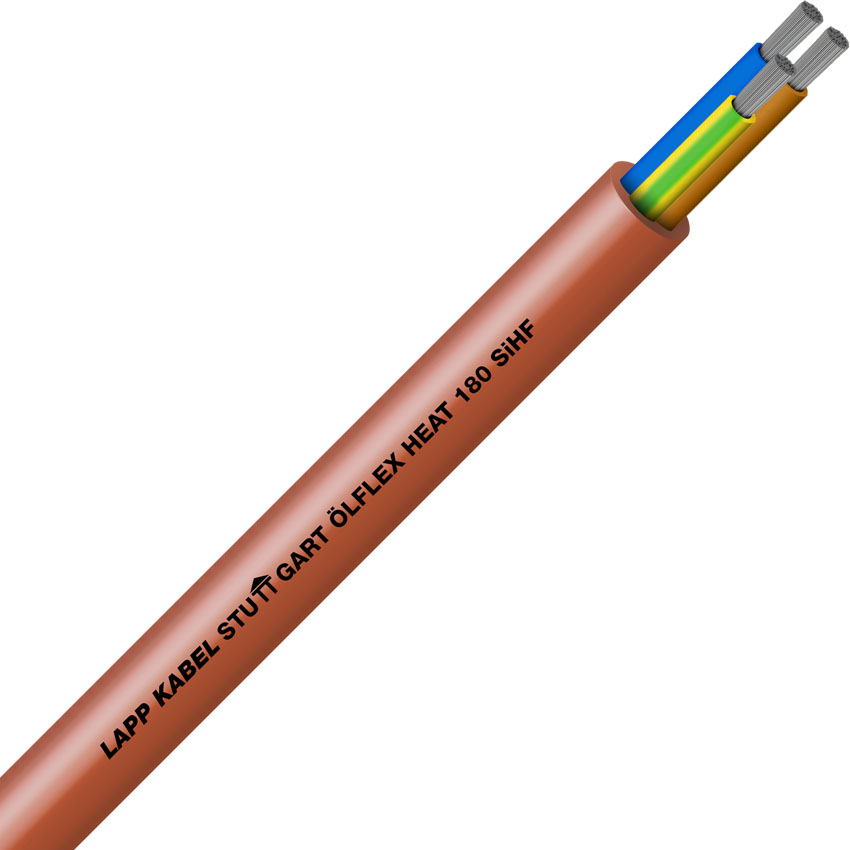

Product Make-up

• Fine-wire, tinned-copper conductor
• Silicone-based core insulation
• Cores twisted in layers
• Silicone-based outer sheath,
  colour red-brown
