+180°C Steel-Armured 12G1.5

Benefits

• Close-meshed braid made of galvanised steel wires protects against mechanical damage
• Longer durability in harsh applications than conventional silicone cables
• Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

• Areas with high ambient temperatures and occasionally mechanical stress
• Typical fields of application
  - Steel and glass works
  - Cement and ceramic works
  - Foundries
  - Shipbuilding industry
  - Furnace construction

Product features

• Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
• Only suitable for use in dry conditions
• Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

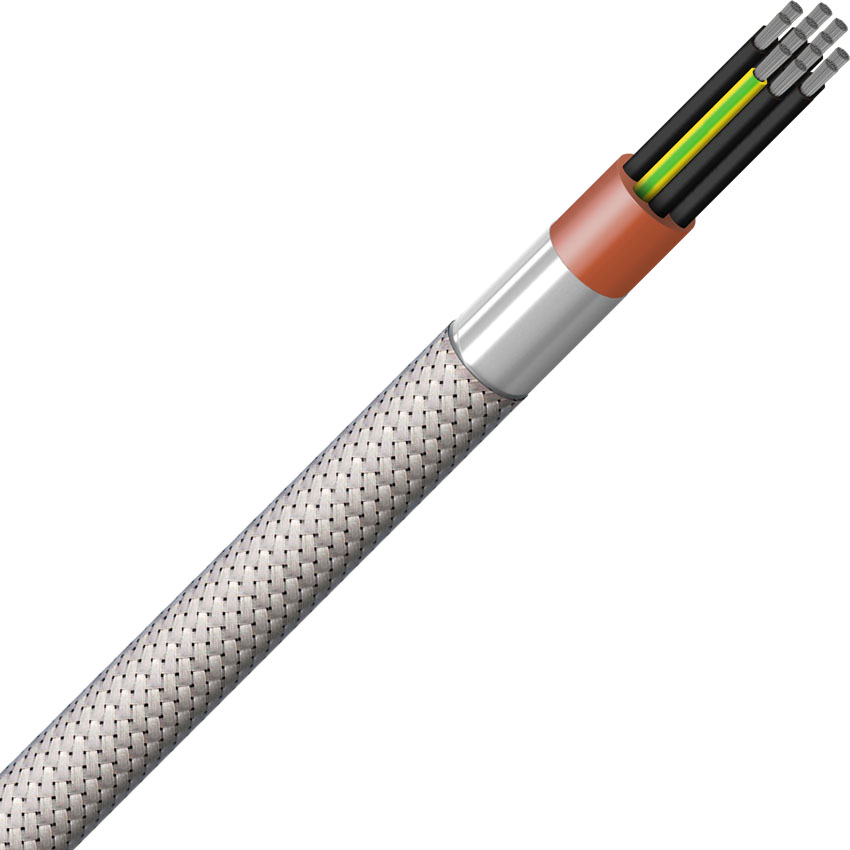

Product Make-up

• Fine-wire, tinned-copper conductor
• Silicone-based core insulation
• Cores twisted together
• Silicone-based outer sheath,
  colour red-brown
• Glass fibre wrapping
• Galvanised steel wire braiding

Temperature range

• -50 °C to +180 °C
  (adequate ventilation required)
