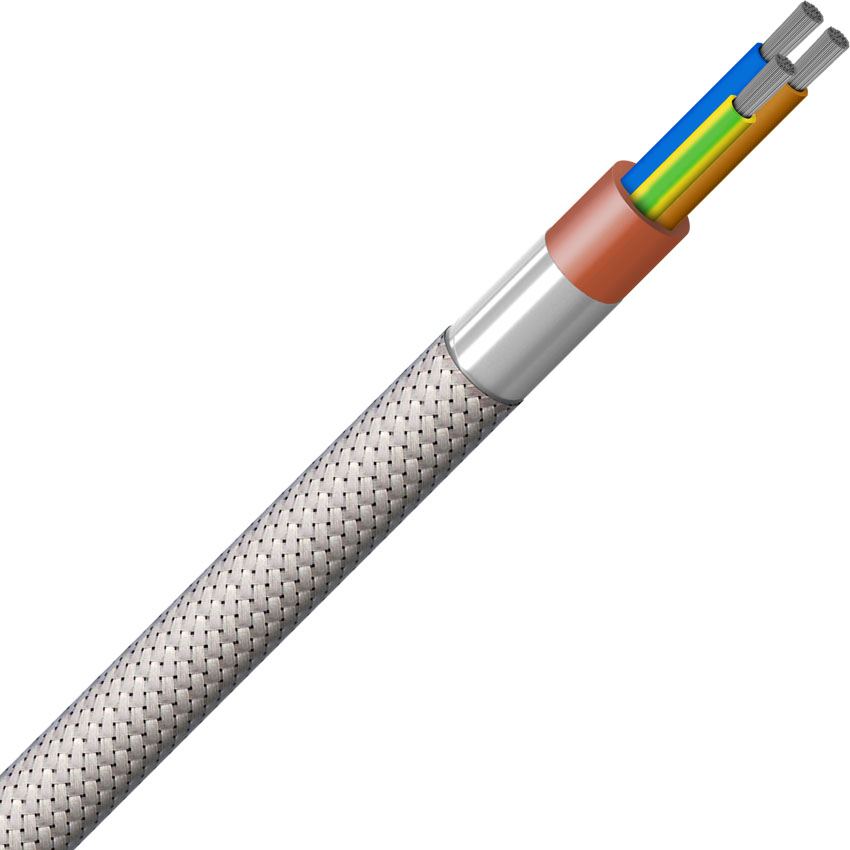

+180°C Steel-Armoured 3G0.75

ÖLFLEX® HEAT 180 GLS, -50°C to +180°C, halogen-free, galvanised steel wire braiding sheath, (colour-coded) 3G0.75 (2 + E)

$13.30

(Per/m excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-0046202 Manufacturer part number: 0046202 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Close-meshed braid made of galvanised steel wires protects against mechanical damage
  • Longer durability in harsh applications than conventional silicone cables
  • Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor

Application range

  • Areas with high ambient temperatures and occasionally mechanical stress
  • Typical fields of application
    - Steel and glass works
    - Cement and ceramic works
    - Foundries
    - Shipbuilding industry
    - Furnace construction

Product features

  • Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
  • Only suitable for use in dry conditions
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Silicone-based core insulation
  • Cores twisted together
  • Silicone-based outer sheath,
    colour red-brown
  • Glass fibre wrapping
  • Galvanised steel wire braiding

Temperature range

  • -50 °C to +180 °C
    (adequate ventilation required)

SKU
LAPP-0046202
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 3
Conductor Size 0.75mm
Colour Red / Brown Stripe
*
*
*
