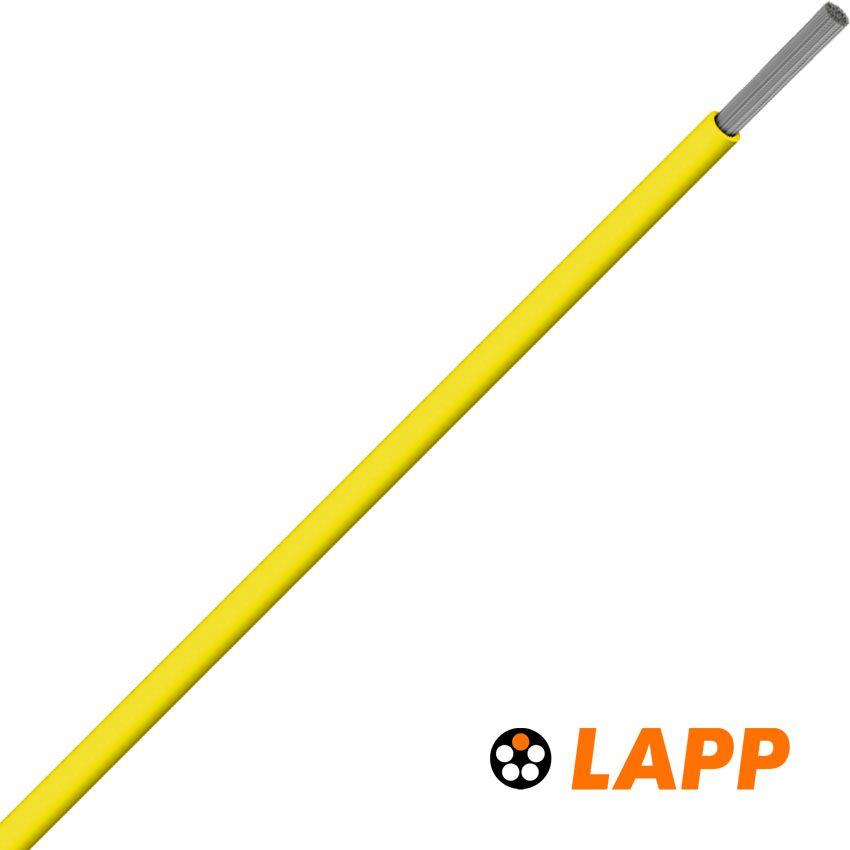

Appliance Wire LSZH 1x0.75 0.6/1kV YE

Low Smoke Zero Halogen Tinned Appliance Wire 110 degree 1x0.75mm 0.6/1kV YE

Free shipping on Web orders over $100

$53.00 (100m excl GST)
On Request
SKU: LAPP-81011111 Manufacturer part number: 81011111

LSZH Single Core Tinned Appliance Wire, 110 Degree, 0.6/1kV.

Low Smoke, Zero Halogen, High Temperature, Flame Retardant Flexible Cable

Flexible tinned copper wire stranding class 5, (0,5-10mm2), or class 6 (16 and more) according to IEC 60228 and AS/NZS 1125. Cross-linked, halogen free, flame retardant compound type X-HF110 acc. to AS/NZS 3808, chemical, oil and UV resistant. For wiring of switchboards, control, general wiring, instrumentation and communication systems. Used where LSZH is needed and where higher current ratings are required. 600/1000V.

Common Applications:

  • Underground Railway
  • Stadiums
  • Airports
  • Shopping malls
  • Data Centres
  • Ships
  • Power Plants and Nuclear Facilities
  • Control Cabinets
  • Switchgear Cabinets
  • Distribution Boxes



Construction, Features and Benefits

  • Flexible tinned copper wire stranding class 5
  • (0,5-10mm2), or class 6 (16 and more) according to IEC 60228 and AS/NZS 1125.
  • Cross-linked, halogen free, flame retardant compound type X-HF110 acc. to AS/NZS 3808, chemical, oil and UV resistant.
  • Wiring of switchboards, control, general wiring, instrumentation and communication systems.
  • Used where LSZH is needed and where higher current ratings are required.
  • 600/1000V

Standards

  • Cable Construction: AS/NZS 5000.1
  • Flame retardant: AS/NZS 1660.5.1; IEC 60332- 3-22 Cat. A; IEC 60332-1
  • Smoke density: AS/NZS 1660.5.2; IEC 61034-2
  • Halogen acid gas content: AS/NZS 1660.5.3, IEC 60754-1
  • Gases evolved during combustion: AS/NZS 1660.5.4, IEC 60754-2

Temperature Rating

  • 110°C

SKU
LAPP-81011111
