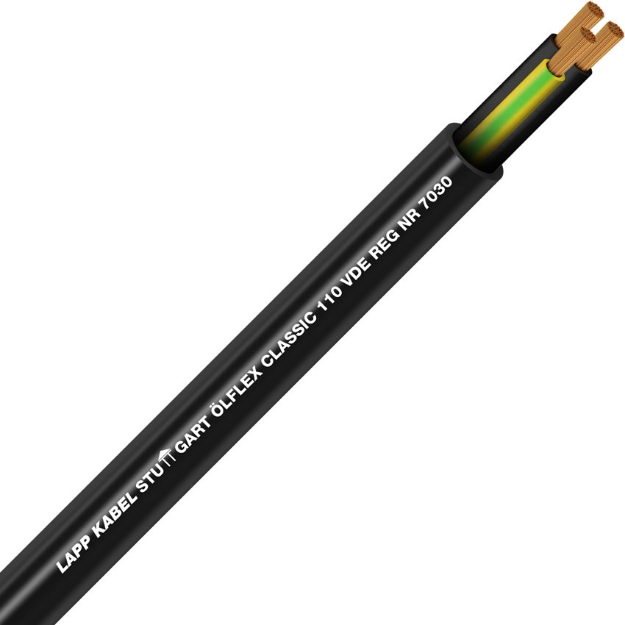

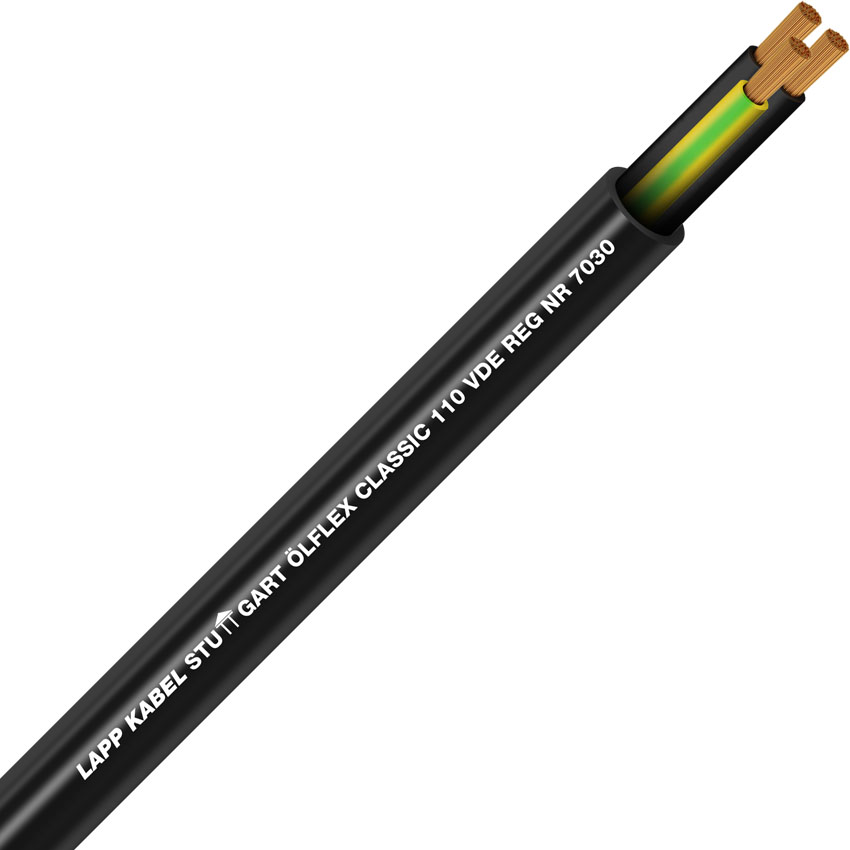

BLACK FLEX 3G2.5 BK

OLFLEX CLASSIC 110 BK, PVC sheath, numbered cores, good for outdoor use, VDE, 3G2.5 (2 + E)
Manufacturer: OLFLEX
SKU: LAPP-1119885
Manufacturer part number: LAPP-1119885
Availability: In Stock. Log in to check exact stocks
$ 3.89 /m
  • 1 - 99 $3.89
  • 100 - 499 $3.50
  • 500 + $3.31
Free Shipping

For more information regarding this product please call us on 1800 931 559

Our most popular control cable. The OLFLEX 110 is suitable for fixed and limited flexing installations. The OLFLEX 110 has a special PVC sheath which is resistant to many oils and chemicals, making this cable suitable for most industrial installations.

Dragchain Use

  • OLFLEX 110 is now rated for use in dragchains
  • For travel distances up to 5m
  • Rated for 200,000 to 1 million bending cycles
  • For 0.5mm to 2.5mm, 2 to 7 conductors
Voltage Rating
300/500V

Temperature range
Occasional flexing: -15°C to +70°C
In power chains: -5°C to +70°C
Fixed installation: -40°C to +80°C


Benefits

  • Suitable for outdoor applications
  • Wide choice of standardized lengths and individual cuts

Application range

  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Dry or damp rooms that are subject to medium mechanical loads
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • In power chains for a travelling distance up to 5 m and 0,2 ... 1 million bending cycles, for following dimensions: 0,5 to 2.5mm² and 2 to 7 conductors
  • Suitable for outdoor applications

Product features

  • Flame-retardant according IEC 60332-1-2
  • Good chemical resistance, see catalogue appendix T1
  • Oil-resistant according to DIN EN 50290-2-22 (TM54)
  • UV and weather-resistant according to ISO 4892-2

Norm references / Approvals

  • VDE reg. no. 7030 for the following sizes:up to 2.5 mm²: 2 - 65 coresfrom 4 mm²: 2 - 7 coresfrom 25 mm²: 2 - 5 cores

Product Make-up

  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • Cores twisted in layers
  • PVC outer sheath, black (RAL 9005)

SKU
LAPP-1119885

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.


Type Format Size
Datasheet 0.10 MB
Products specifications
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Conductors 3
Conductor Size 2.5mm
Colour Black

Type Format Size
Datasheet 0.10 MB
Products specifications
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Conductors 3
Conductor Size 2.5mm
Colour Black
