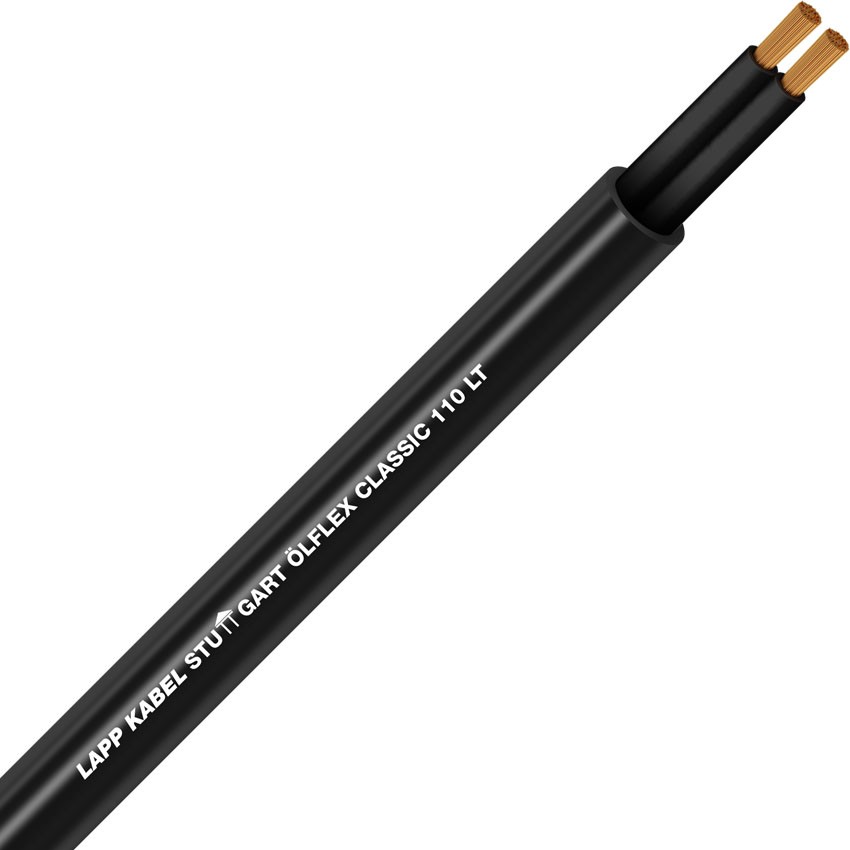

Cold Black Flex 2X2.5

ÖLFLEX^® CLASSIC 110 LT - PVC control cable, cold-resistant, flexible, UV-resistant, for low temperature and outdoor use, 300/500V, also for YSLY or YY arctic grade

Benefits

• Inexpensive control cable for flexing outdoor use
• Space-saving installation due to small cable diameters
• High electrical performance due to 4 kV test voltage

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
• Freezing plants, cold storage
• Suitable for outdoor applications
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Flame-retardant according IEC 60332-1-2
• Flexible down to -30°C
• UV and weather-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396

Norm references / Approvals

• Based on EN 50525-2-51

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation: PVC, cold-resistant
• Cores twisted in layers
• Outer sheath: PVC, cold-resistant, black
