Push Disconnect Terminal - 4mm - WTPN

Connector Disconnect Terminal WTPN 4 TKG

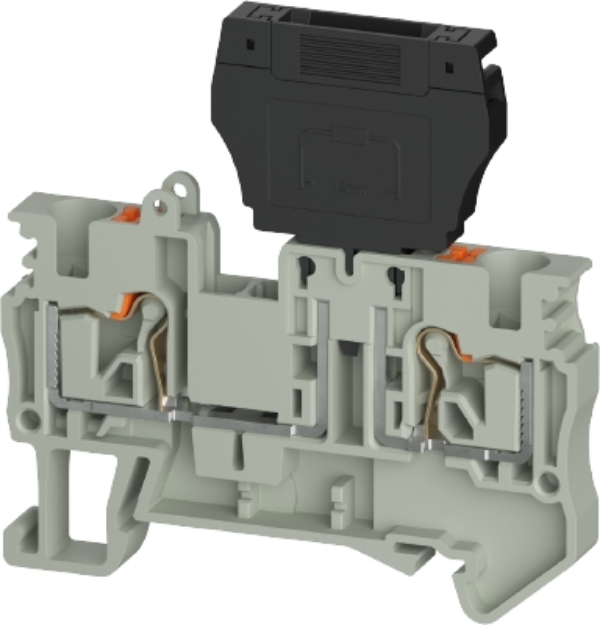

This grey Wieland WTPN 4 TKG connector disconnect terminal features a pluggable push-in connection, a 4 mm² nominal cross section, and a rated voltage of 500 V. It supports conductor cross sections from 0.2 mm² to 6 mm² and is designed with a compact 6.1 mm width.

Technical Details

• Nominal cross section: 4 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 1
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: pluggable
• Connection type: push-In connection//true
• Halogen free: yes
• Rated current: 6 A
• Rated voltage: 500 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 57 mm
• Width: 6.1 mm
• Height: 50.6 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.2 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.2 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 4 mm²
• Wire strip length: 12 mm
• Cross section UL: 24-10 AWG
• Voltage UL: 300 V
• Current factory wiring: 6 A
• Current field wiring: 6 A
• Cross section CSA: 24-10 AWG
• Voltage CSA: 300 V
• Current CSA: 6 A

SKU WIE-5D.204.4055.0
MPN 5D.204.4055.0
EAN 4049088718953
