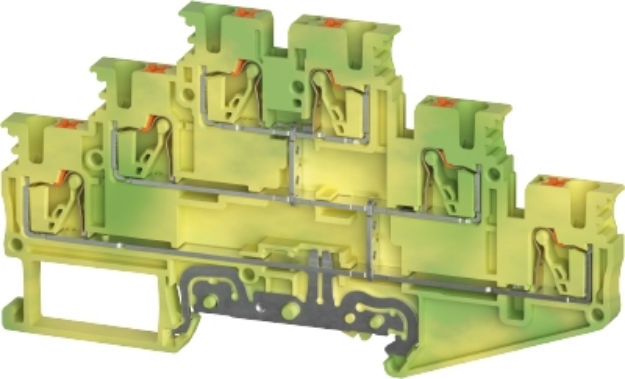

Push Terminal - 2.5mm - WTPN - Earth

Earth Terminal WTPN 2.5 E3 PE

Technical Details

• Nominal cross section: 2.5 mm²
• Color: green/yellow
• Number of levels: 3
• Number of clamp positions per level: 3
• Width/grid dimension: 5.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-In connection//true
• Halogen free: yes
• Rated voltage: 500 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 102.7 mm
• Width: 5.1 mm
• Height: 58.5 mm
• Connection type 1: plug-in connection
• Connection type 2: spring clamp connection
• Minimum cross section solid: 0.14 mm²
• Maximum cross section solid: 4 mm²
• Minimum cross section fine stranded: 0.14 mm²
• Maximum cross section fine stranded: 2.5 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 4 mm²
• Wire strip length: 10 mm
• Cross section UL: 26-12 AWG
• Voltage UL: 300 V
• Cross section CSA: 26-12 AWG
• Voltage CSA: 300 V

SKU WIE-5D.203.9755.0
MPN 5D.203.9755.0
EAN 4049088718922
