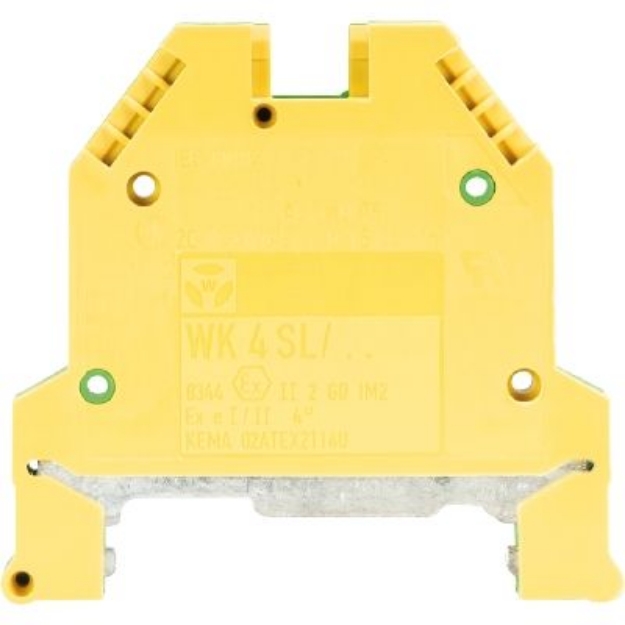

earth terminal WK 4 SL Green/Yellow

Ground DIN rail terminal block with screw connection for mounting on TS 35

Free shipping on Web orders over $100

$6.49

(Each excl GST)

In Stock

SKU: WIE-57.504.9055.0 Manufacturer part number: 57.504.9055.0 Manufacturer: WIELAND

Qty:

Overview
Specifications
Downloads
Ask A Specialist

Ground DIN rail terminal block with screw connection for mounting on TS 35, nominal cross section 4 mm², width 6 mm, color green/yellow

Specifications

nominal cross section	4 mm²
color	green/yellow
number of levels	1
number of clamp positions per level	2
width/grid dimension	6 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	yes
mounting method	TS35
terminal blocks for electrical installations	yes
rated voltage	800 V
rated impulse voltage	8 kV
pollution degree	3
closing plate required	no
type of insulation material	thermoplastic
length	51 mm
connection type 1	screw connection
connection type 2	screw connection
minimum cross section solid	0.5 mm²
maximum cross section solid	6 mm²
minimum cross section fine stranded	0.5 mm²
maximum cross section fine stranded	4 mm²
wire strip length	9 mm

SKU

WIE-57.504.9055.0

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in NZ	Only Show Stocked Items
Locally Stocked in Australia	Only Show Stocked Items
Conductor Size	4mm
Number of Poles	3
Clamp Type	Screw
Colour	Earth (Green / Yellow)
Number of Decks	Single
