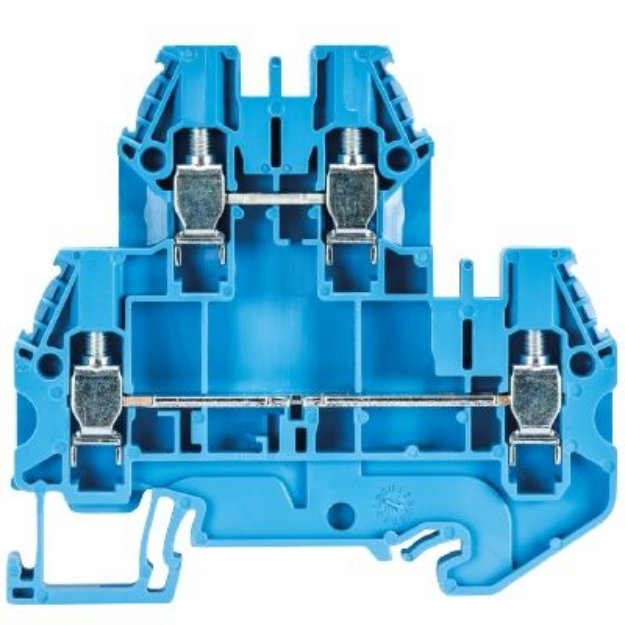

Multi-Tier Terminal WT 4 E Blue

Duo Feed-through terminal with Screw connection for mounting on TS 35

$6.80

(Each excl GST)

In Stock

SKU: WIE-58.504.7055.6 Manufacturer part number: 58.504.7055.6 Manufacturer: WIELAND

Select or Type Quantity

SKU: WIE-58.504.7055.6 Manufacturer part number: 58.504.7055.6 Manufacturer: WIELAND

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Duo Feed-through terminal with Screw connection for mounting on TS 35, nominal cross section: 4 mm², width: 6 mm, color: blue

Specifications

nominal cross section	4 mm²
color	blue
number of levels	2
number of clamp positions per level	2
width/grid dimension	6 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	no
mounting method	DIN rail (top hat rail)
terminal blocks for electrical installations	no
rated current	32 A
rated voltage	800 V
rated impulse voltage	8 kV
pollution degree	3
closing plate required	yes
type of insulation material	thermoplastic
length	73 mm
width	6 mm
height	67.4 mm

SKU

WIE-58.504.7055.6

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in NZ	Only Show Stocked Items
Locally Stocked in Australia	Only Show Stocked Items
Conductor Size	4mm
Number of Poles	3
Clamp Type	Screw
Colour	Earth (Green / Yellow)
Number of Decks	Single

Product Files

Type Name

Data Sheet

Multi-Tier Terminal WT 4 E Blue
