Push Terminal - 16mm - WTPN - Earth

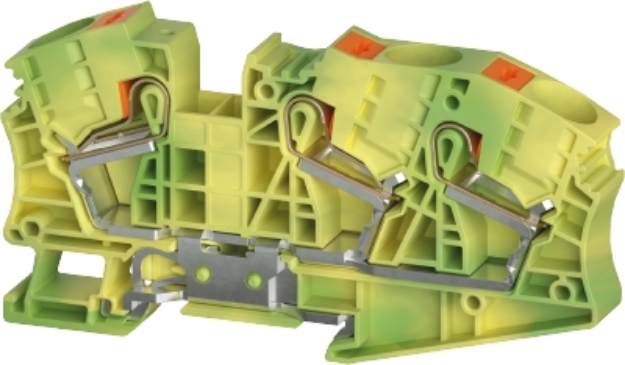

Earth Terminal WTPN 16 D1/2 PE

The WTPN 16 D1/2 PE earth terminal features a 16 mm² nominal cross section, green/yellow insulation, and push-in connections for reliable electrical installation. It mounts on a DIN rail and supports conductor sizes from 0.5 mm² to 25 mm², with a rated voltage of 1000 V.

Technical Details

• Nominal cross section: 16 mm²
• Color: green/yellow
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 12 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: push-In connection//true
• Halogen free: yes
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Length: 101.3 mm
• Width: 12 mm
• Height: 54.3 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.5 mm²
• Maximum cross section solid: 25 mm²
• Minimum cross section fine stranded: 0.5 mm²
• Maximum cross section fine stranded: 16 mm²
• Minumum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 16 mm²
• Wire strip length: 18 mm
• Cross section UL: 20-4 AWG
• Voltage UL: 600 V
• Cross section CSA: 20-4 AWG
• Voltage CSA: 600 V

SKU WIE-5D.216.9155.0
MPN 5D.216.9155.0
EAN 4049088732263
