Push Terminal - 16mm -WTPN - Blue

Feed-Through Terminal WTPN 16 D1/2 BL

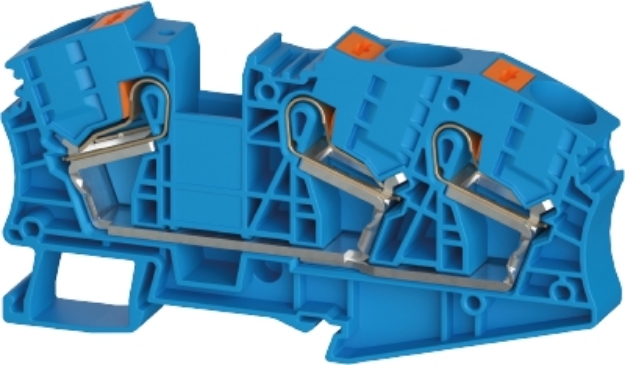

A blue Wieland WTPN 16 D1/2 BL feed-through terminal with a 16 mm² nominal cross section, push-in connection, and DIN rail mounting. It supports rated currents up to 76 A and rated voltages up to 1000 V.

Technical Details

• Nominal cross section: 16 mm²
• Color: blue
• Number of levels: 1
• Number of clamp positions per level: 3
• Width/grid dimension: 12 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-In connection
• Halogen free: yes
• Rated current: 76 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Length: 101.3 mm
• Width: 12 mm
• Height: 54.3 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.5 mm²
• Maximum cross section solid: 25 mm²
• Minimum cross section fine stranded: 0.5 mm²
• Maximum cross section fine stranded: 16 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 16 mm²
• Wire strip length: 18 mm
• Cross section UL: 20-4 AWG
• Voltage UL: 600 V
• Current factory wiring: 76 A
• Current field wiring: 76 A
• Cross section CSA: 20-4 AWG
• Voltage CSA: 600 V
• Current CSA: 76 A

SKU WIE-5D.216.5055.6
MPN 5D.216.5055.6
EAN 4049088732256
