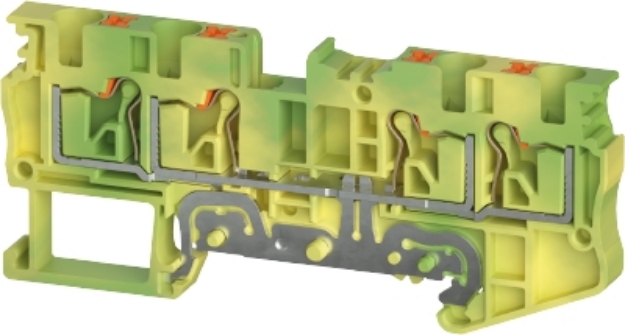

Push Terminal - 4mm - WTPN - Earth

Push Terminal - 4mm - WTPN - Earth

Earth terminal WTPN 4 D2/2 PE is a 4-pole, single-level, green/yellow, push-connection solution for reliable electrical termination and distribution. Key characteristics include a nominal conductor size of 4 mm², a rated voltage of 800 V, din rail (top hat rail) mounting, and PA insulation. Additional design features include a 6.1 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

• Net weight single part: 13.85 g
• Nominal cross section: 4 mm²
• Color: green/yellow
• Number of levels: 1
• Number of clamp positions per level: 3
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Halogen free: yes
• Rated voltage: 800 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 80.4 mm
• Width: 6.1 mm
• Height: 36.5 mm
• Connection type: push-In connection//true
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.2 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.2 mm²
• Maximum cross section fine stranded: 4 mm²
• Minumum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 4 mm²
• Wire strip length: 12 mm
• Cross section UL: 24-10 AWG
• Voltage UL: 600 V
• Cross section CSA: 24-10 AWG
• Voltage CSA: 600 V

SKU WIE-5D.204.9255.0
MPN 5D.204.9255.0
EAN 4049088706745
