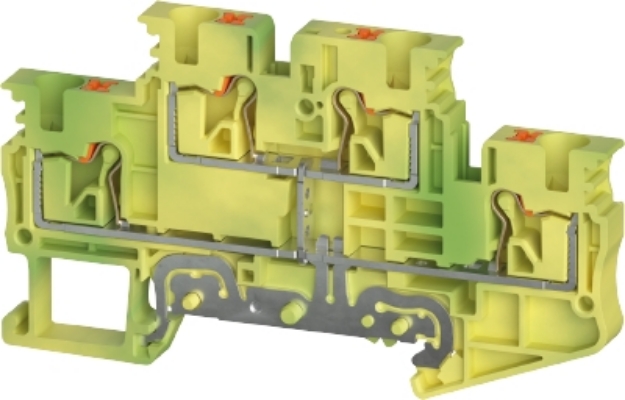

Push Terminal - 4mm - WTPN - Earth

Name: Push Terminal - 4mm - WTPN - Earth
SKU: WIE-5D.204.9655.0
Price: 13.90 NZD
Availability: InStock

4 Pole, earth terminal WTPN 4 E PE rated voltage 500V, 2 levels, 4mm, push-In connection

$13.90 (Each excl GST)

(Each excl GST)

In Stock

SKU: WIE-5D.204.9655.0 Manufacturer part number: 5D.204.9655.0 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-5D.204.9655.0 Manufacturer part number: 5D.204.9655.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Earth Terminal WTPN 4 E PE

The WTPN 4 E PE earth terminal features a 4 mm² nominal cross section, push-in connections, two levels, and four clamp positions per level. Its green/yellow, halogen-free housing mounts on a DIN rail and supports a rated voltage of 500 V.

Technical Details

Nominal cross section: 4 mm²
Color: green/yellow
Number of levels: 2
Number of clamp positions per level: 4
Width/grid dimension: 6.1 mm
Insulating housing: PA
Inflammability class of insulation material acc. with UL94: V0
Mounting method: DIN rail (top hat rail)
Terminal blocks for electrical installations: yes
Connection type: push-in connection
Halogen free: yes
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Pollution degree: 3
Closing plate required: yes
Type of insulation material: thermoplastic
Length: 81 mm
Width: 6.1 mm
Height: 47.5 mm
Connection type 1: plug-in connection
Minimum cross section solid: 0.2 mm²
Maximum cross section solid: 6 mm²
Minimum cross section fine stranded: 0.2 mm²
Maximum cross section fine stranded: 4 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve: 4 mm²
Wire strip length: 12 mm
Cross section UL: 24-10 AWG
Voltage UL: 300 V
Cross section CSA: 24-10 AWG
Voltage CSA: 300 V

SKU WIE-5D.204.9655.0
MPN 5D.204.9655.0
EAN 4049088706776

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
