End Stop - 8mm - Screw

Name: End Stop - 8mm - Screw
SKU: WIE-0D.200.0355.0
Price: 2.29 AUD
Availability: InStock

End bracket WEFN 4N screw, 8mm mounting method DIN rail

$2.29 (Each excl GST)

(Each excl GST)

In Stock

SKU: WIE-0D.200.0355.0 Manufacturer part number: 0D.200.0355.0 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-0D.200.0355.0 Manufacturer part number: 0D.200.0355.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

End Stop - 8mm - Screw

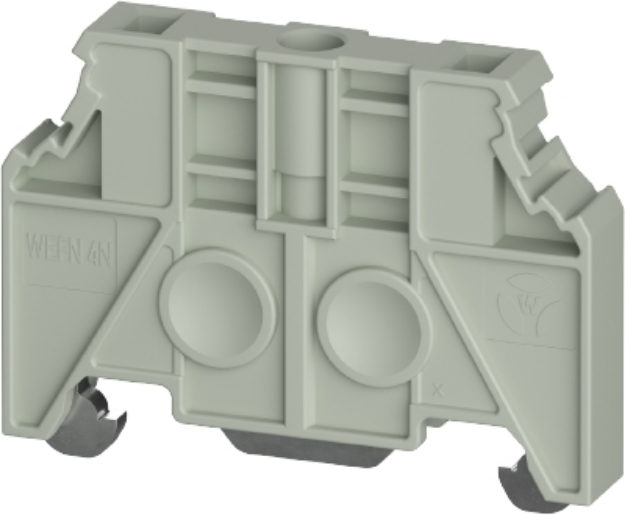

End bracket WEFN 4N is a grey, screw-connection solution for reliable electrical termination and distribution. Key characteristics include din rail (top hat rail) mounting. Additional design features include a 8 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

Net weight single part: 15.76 g
Color: grey
Inflammability class of insulation material acc. with UL94: V0
Width/grid dimension: 8 mm
Latching: screwable
Length: 50 mm
Mounting method: DIN rail (top hat rail)
Height: 35 mm
Tightening moment: 0.6 Nm
Halogen free: yes

SKU WIE-0D.200.0355.0
MPN 0D.200.0355.0
EAN 4049088717925
