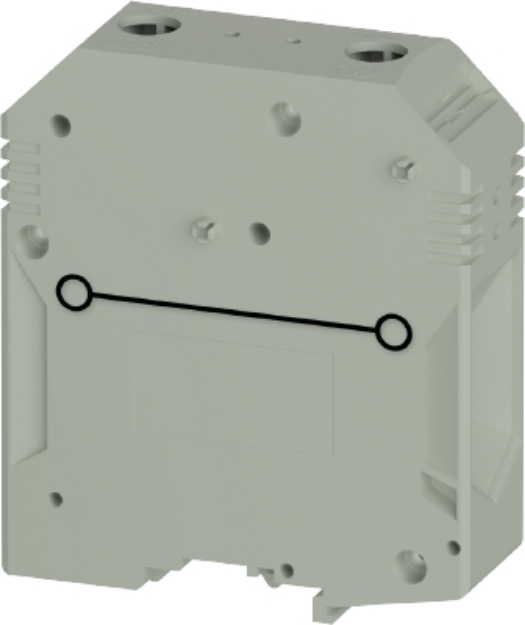

Screw Terminal - 150mm -WTN - Grey

Feed-Through Terminal WTN 150

The Wieland WTN 150 feed-through terminal is a grey, single-level terminal with screw connection for conductors from 35 to 150 mm². It supports rated currents up to 309 A and rated voltages up to 1000 V for DIN rail mounting.

Technical Details

• Nominal cross section: 150 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 38 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Rated current: 309 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: no
• Type of insulation material: thermoplastic
• Length: 93 mm
• Width: 31 mm
• Height: 109 mm
• Minimum cross section solid: 35 mm²
• Maximum cross section solid: 150 mm²
• Minimum cross section fine stranded: 35 mm²
• Maximum cross section fine stranded: 150 mm²
• Wire strip length: 36 mm
• Torque conductor mounting: 19 Nm
• Cross section UL: 8-3/0 AWG
• Voltage UL: 600 V
• Current factory wiring: 275 A
• Current field wiring: 275 A
• Cross section CSA: 8-3/0 AWG
• Voltage CSA: 600 V
• Current CSA: 275 A

SKU WIE-5D.S97.0055.0
MPN 5D.S97.0055.0
EAN 4049088725760
