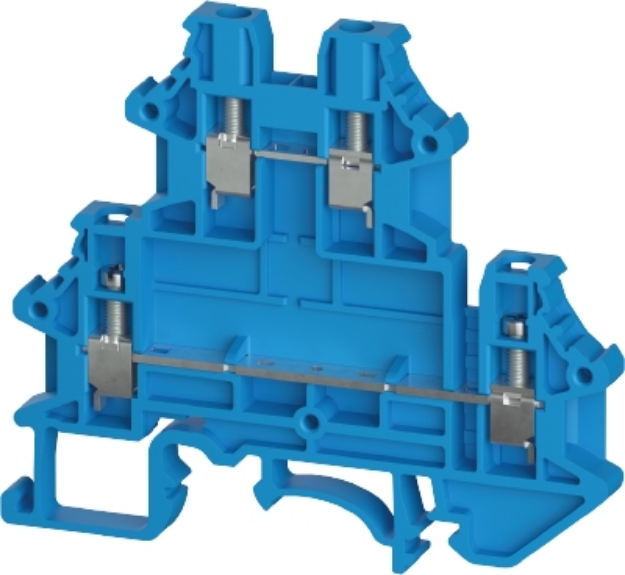

Screw Multi Tier Terminal - 2.5mm -WTN E

Multi-Tier Terminal Wtn 2.5 E Bl

This blue two-level multi-tier terminal features screw connections, a 2.5 mm² nominal cross section, and a rated voltage of 800 V. It mounts on DIN rail and supports reliable industrial wiring applications.

Technical Details

• Nominal cross section: 2.5 mm²
• Color: blue
• Number of levels: 2
• Number of clamp positions per level: 2
• Width/grid dimension: 5.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Rated current: 24 A
• Rated voltage: 800 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 71.5 mm
• Width: 5.1 mm
• Height: 63 mm
• Minimum cross section solid: 0.34 mm²
• Maximum cross section solid: 4 mm²
• Minimum cross section fine stranded: 0.34 mm²
• Maximum cross section fine stranded: 2.5 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Torque conductor mounting: 0.4 Nm
• Cross section UL: 22-12 AWG
• Voltage UL: 600 V
• Current factory wiring: 20 A
• Current field wiring: 20 A
• Cross section CSA: 22-12 AWG
• Voltage CSA: 600 V
• Current CSA: 20 A

SKU WIE-5D.S03.7055.6
MPN 5D.S03.7055.6
EAN 4049088724763
