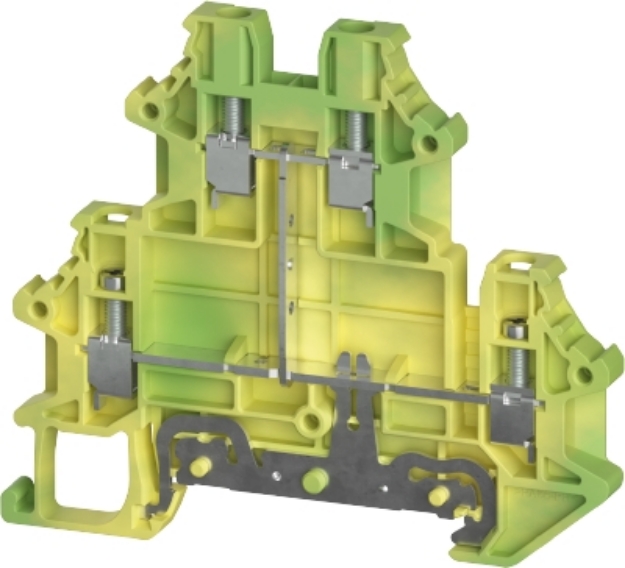

Screw Terminal - 2.5mm -WTN - Earth

Earth Terminal Wtn 2.5 E Pe

This green/yellow earth terminal features a two-level screw connection for DIN rail mounting. It supports conductors from 0.25 mm² to 4 mm², has an 800 V rated voltage, and offers a compact 5.1 mm width.

Technical Details

• Rated voltage: 800 V
• Screw connection
• Number of levels: 2
• Number of clamp positions per level: 2
• Nominal cross section: 2.5 mm²
• Connectable conductor cross section fine stranded without cable end sleeve: 0.34 mm² - 2.5 mm²
• Mounting method: DIN rail (top hat rail)
• Color: green/yellow
• Width/grid dimension: 5.1 mm
• Inflammability class of insulation material acc. with UL94: V0
• Insulating housing: PA
• Halogen free: yes
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 71.5 mm
• Width: 5.1 mm
• Height: 63 mm
• Minimum cross section solid: 0.34 mm²
• Maximum cross section solid: 4 mm²
• Minimum cross section fine stranded: 0.34 mm²
• Maximum cross section fine stranded: 2.5 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Torque conductor mounting: 0.4 Nm
• Cross section UL: 22-12 AWG
• Voltage UL: 600 V
• Cross section CSA: 22-12 AWG
• Voltage CSA: 600 V

SKU WIE-5D.S03.9655.0
MPN 5D.S03.9655.0
EAN 4049088724879
