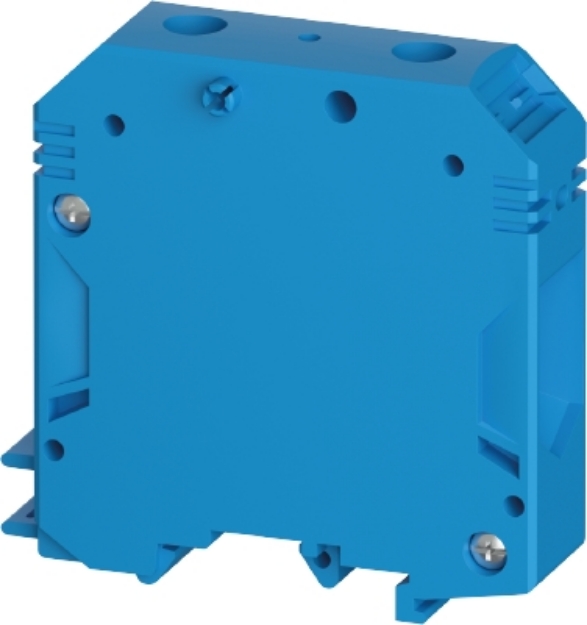

Screw Terminal - 50mm -WTN - Blue

Feed-Through Terminal WTN 50 BL

The WTN 50 BL feed-through terminal features a 50 mm² nominal cross section, screw connection, and DIN rail mounting. It supports rated currents up to 150 A and rated voltages up to 1000 V, with a blue PA insulating housing.

Technical Details

• Nominal cross section: 50 mm²
• Color: blue
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 20 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Rated current: 150 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Closing plate required: no
• Length: 70.5 mm
• Width: 20 mm
• Height: 76.6 mm
• Minimum cross section solid: 16 mm²
• Maximum cross section solid: 50 mm²
• Minimum cross section fine stranded: 16 mm²
• Maximum cross section fine stranded: 50 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 16 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 50 mm²
• Wire strip length: 26 mm
• Torque conductor mounting: 5.6 Nm
• Cross section UL: 6-2sol AWG, 1/0str AWG
• Voltage UL: 600 V
• Current factory wiring: 150 A
• Current field wiring: 150 A
• Cross section CSA: 6-2sol AWG, 1/0str AWG
• Voltage CSA: 600 V
• Current CSA: 150 A

SKU WIE-5D.S50.0055.6
MPN 5D.S50.0055.6
EAN 4049088725593
