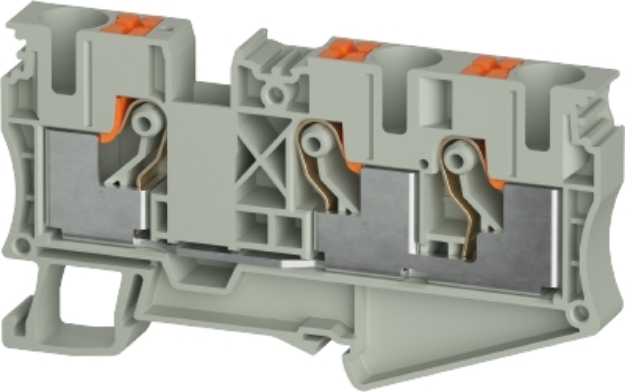

Push Terminal - 10mm -WTPN - Grey

Feed-Through Terminal WTPN 10 D1/2

The WTPN 10 D1/2 feed-through terminal supports reliable electrical connections with a 10 mm² nominal cross section, a rated current of 57 A, and a rated voltage of 1000 V. It features push-in and plug-in connections, a grey PA insulating housing, and DIN rail mounting.

Technical Details

• Nominal cross section: 10 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 3
• Width/grid dimension: 10 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: push-In connection//true
• Halogen free: yes
• Rated current: 57 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Length: 90.5 mm
• Width: 10 mm
• Height: 50.1 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.5 mm²
• Maximum cross section solid: 16 mm²
• Minimum cross section fine stranded: 0.5 mm²
• Maximum cross section fine stranded: 10 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 10 mm²
• Wire strip length: 18 mm
• Cross section UL: 20-6 AWG
• Voltage UL: 600 V
• Current factory wiring: 60 A
• Current field wiring: 60 A
• Cross section CSA: 20-6 AWG
• Voltage CSA: 600 V
• Current CSA: 60 A

SKU WIE-5D.210.5055.0
MPN 5D.210.5055.0
EAN 4049088719233
