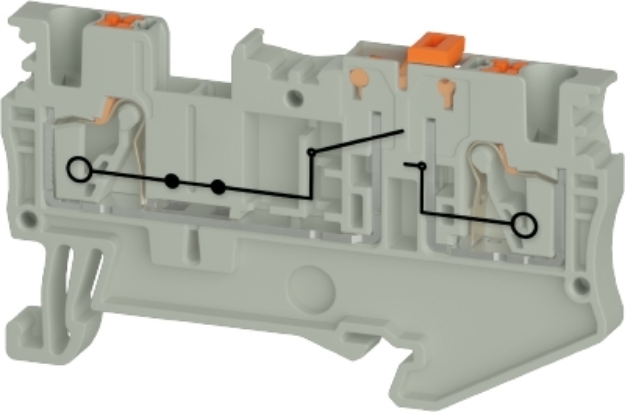

Push Disconnect Terminal - 2.5mm - WTPN

Knife Disconnect Terminal WTPN 2.5 TKM

The Wieland WTPN 2.5 TKM knife disconnect terminal features a 2.5 mm² nominal cross section, 20 A rated current, and 400 V rated voltage. It provides reliable push-in, plug-in, and screw connections for DIN rail mounting.

Technical Details

• Nominal cross section: 2.5 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 8
• Width/grid dimension: 5.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: push-In connection//true
• Halogen free: yes
• Rated current: 20 A
• Rated voltage: 400 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 61.7 mm
• Width: 5.1 mm
• Height: 38.2 mm
• Connection type 1: plug-in connection
• Connection type 2: screw connection
• Minimum cross section solid: 0.14 mm²
• Maximum cross section solid: 4 mm²
• Minimum cross section fine stranded: 0.14 mm²
• Maximum cross section fine stranded: 2.5 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Cross section UL: 26-12 AWG
• Voltage UL: 300 V
• Current factory wiring: 16 A
• Current field wiring: 16 A
• Cross section CSA: 26-12 AWG
• Voltage CSA: 300 V
• Current CSA: 16 A

SKU WIE-5D.203.2055.0
MPN 5D.203.2055.0
EAN 4049088718687
