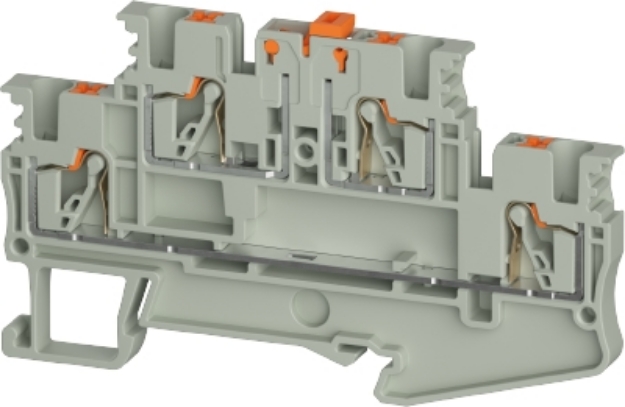

Push Disconnect Terminal - 2.5mm - WTPN E

Knife Disconnect Terminal WTPN 2.5 E TKM

The Wieland WTPN 2.5 E TKM knife disconnect terminal features a compact two-level design, push-in and plug-in connections, and reliable electrical performance with a 400 V rated voltage and 20 A rated current.

Technical Details

• Nominal cross section: 2.5 mm²
• Color: grey
• Number of levels: 2
• Number of clamp positions per level: 10
• Width/grid dimension: 5.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: push-In connection//true
• Halogen free: yes
• Rated current: 20 A
• Rated voltage: 400 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 78.5 mm
• Width: 5.1 mm
• Height: 49.2 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.14 mm²
• Maximum cross section solid: 4 mm²
• Minimum cross section fine stranded: 0.14 mm²
• Maximum cross section fine stranded: 2.5 mm²
• Minumum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Cross section UL: 26-12 AWG
• Voltage UL: 300 V
• Cross section CSA: 26-12 AWG
• Voltage CSA: 300 V

SKU WIE-5D.203.2255.0
MPN 5D.203.2255.0
EAN 4049088718694
