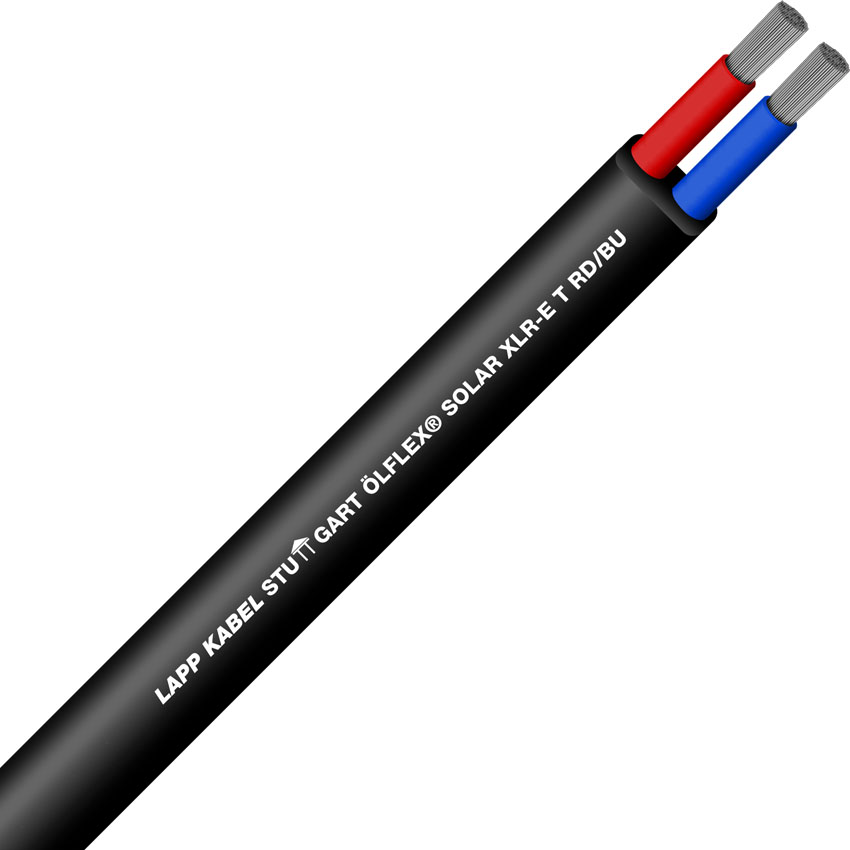

LAPP Solar Cable 2x6mm

LAPP XLR-E T Solar Cable is made and tested to the latest international standard EN 50618.

EN 50618 is a new a higher level standard that supercedes the older PV1-F standard which is no longer in effect. The new LAPP XLR-E T Solar Cable has improved sheath technology to ensure this is the right cable for your application long term.

Standards
Independently certified by TUV to EN 50618
Design conforms to the new standard IEC 62930

Nominal voltage
DC U0/U : 1,5/1,5 kV
Max. permissible operating voltage:
DC 1,8 kV (Conductor-conductor, non earthed system)

Temperature range
-40°C to +120°C max. conductor temperature

Minimum bending radius
Fixed installation: 4 x outer diameter

Conductor stranding
Fine wire according to VDE 0295,
class 5/IEC 60228 class 5

Test voltage
AC 6500 V
