PreviousLAPP Solar Cable 1x6mm EN 5...
NextLAPP Solar Cable 2x6mm

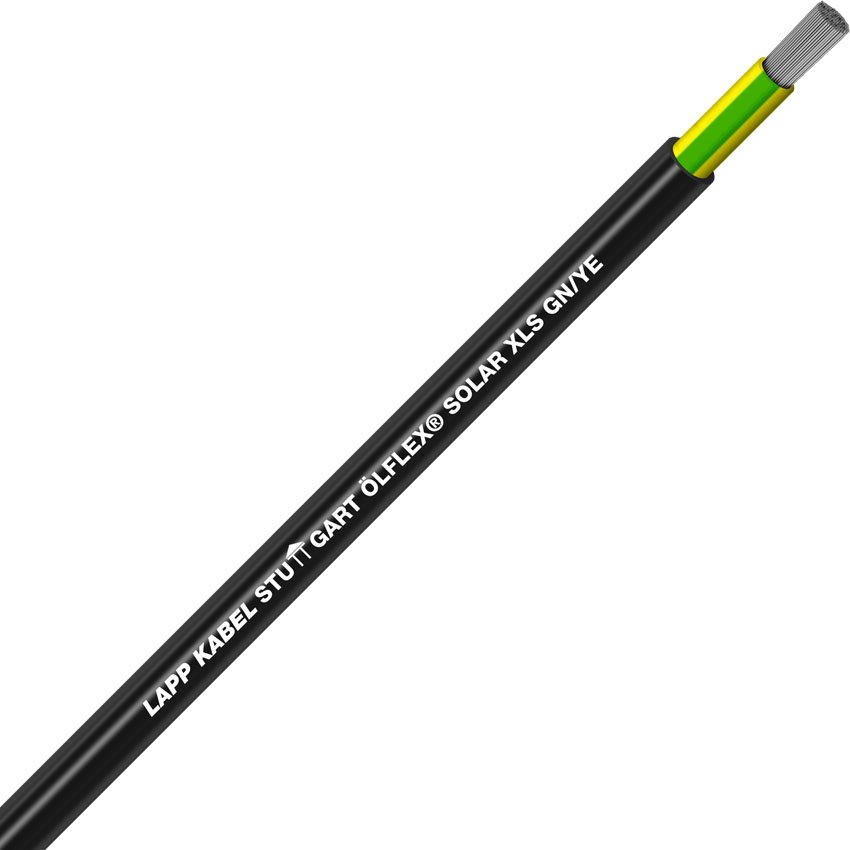

LAPP Solar Earth Cable 1x6mm

ÖLFLEX® Solar XLS Earth Cable 1x6mm GNYE/BK

Free shipping on Web orders over $100

$361.00
(100m excl GST)
In Stock
Quantity Breaks
1+
5+
25+
$361.00
$361.00
$361.00
SKU: LAPP-0025823S Manufacturer part number: 0025823S Manufacturer: ÖLFLEX®

The only truly UV Resistant Earth Cable on the market.

This Solar Earth Cable is a variation on LAPP's standard Solar Cable range. LAPP use a traditional fine stranded earth cable and then extrude a special black UV resistant sheath over top.

Nominal voltage

  • DC U0/U : 900/1500 V
  • Max. permissible operating voltage:
  • DC 1,8 kV (Conductor-conductor, non earthed system)

Temperature range
-40°C to +120°C max. conductor temperature based on EN 60216-1

Minimum bending radius
Fixed installation: 4 x outer diameter

Conductor stranding
Fine wire according to VDE 0295, class 5/IEC 60228 class 5

Test voltage
AC 6500 V


SKU: LAPP-0025823s
MPN: 25823s
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Colour Earth (Green / Yellow)
Conductor Size 6mm
Number of Conductors 1
*
*
*
