ÖLFLEX® ULTRA SCREEN VSD, Double Screened, Black 3x35 + 3G6 (enhanced)

Free shipping on Web orders over $100

$76.00

(Per/m excl GST)

In Stock

Quantity Breaks

10+

50+

$76.00

SKU: LAPP-3804264A Manufacturer part number: 3804264A

Qty:

Overview
Specifications
Contact Us
Downloads

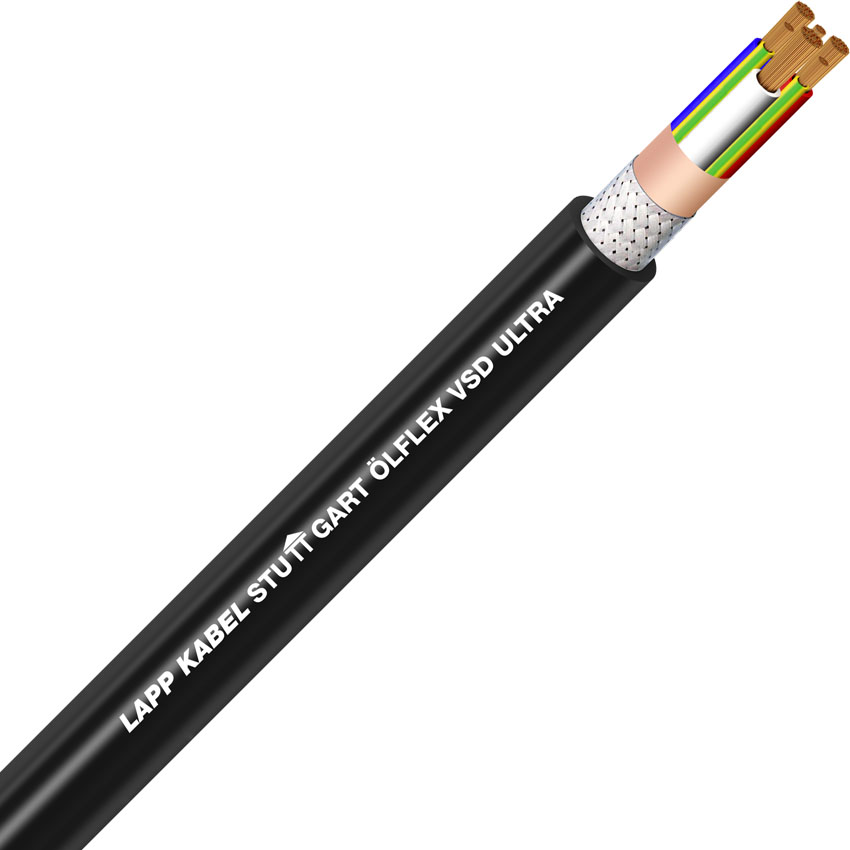

The ÖLFLEX^® ULTRA SCREEN is the latest generation VSD/VFD motor cable.

The new LAPP VSD ULTRA gets its name from the special ULTRA performance screen. This innovation in design has a 100% Copper Wrap Screen, reducing the resistance of the screen compared to traditional VSD cables.

Product Design

Fine-wire strand made of bare copper wires
PVC insulation
Cores twisted in layers
Screen
PVC outer sheath - Black

Colour Coding
AS/NZS Colour Coding - Red, White, Blue, Green/Yellow

Screen Type
Tinned Copper Braid + 100% Copper Foil Screen

Voltage Rating
600/1000V

Temperature range

From: -20°C to +90°C

SKU

LAPP-3804264A

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in Australia	Only Show Stocked Items
Locally Stocked in NZ	Only Show Stocked Items
Number of Conductors	4
Conductor Size	35mm
Colour	Black
Cable OD	29mm

Your name *

Your email *

Enquiry *

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Product Files

Type Name

Catalogue Page

ULTRA VSD Catalogue Page

Datasheet

ULTRA VSD Datasheet
