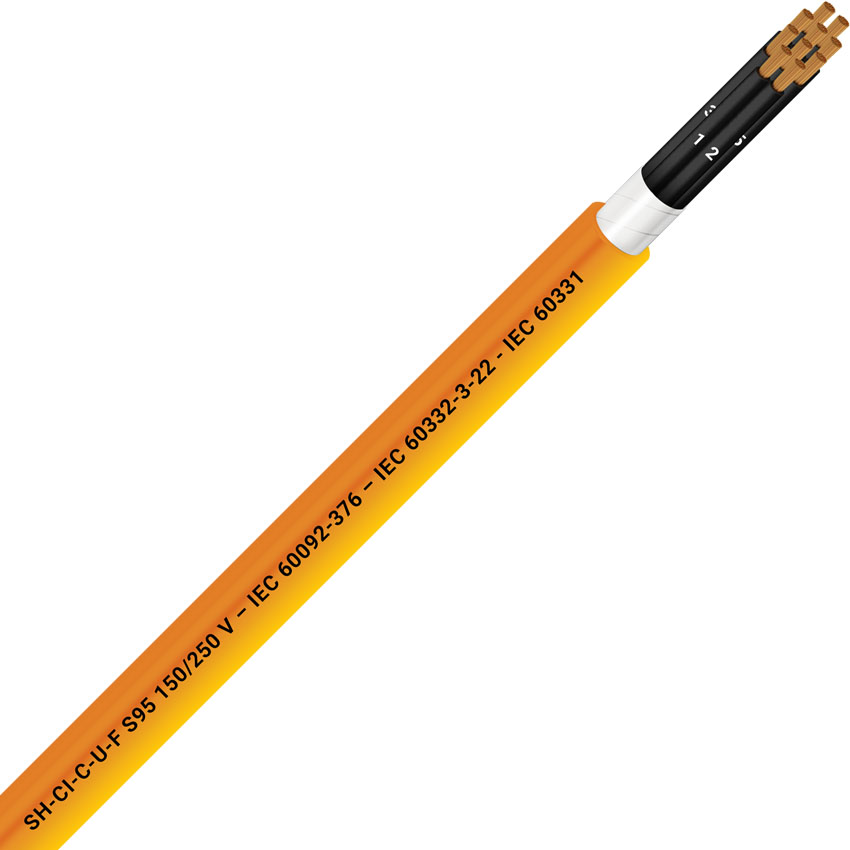

Unarmoured Overall Screened 10x0.50 Orange

SH-CI-C-U-F S95 10x0.50 Orange RAL2003

Free shipping on Web orders over $100

$16.55

(Per/m excl GST)

On Request

SKU: LAPP-N8104S Manufacturer part number: N8104S

Qty:

Overview
Downloads
Ask A Specialist

SH-CI-C-U-F S95

Control and instrumentation, collectively screened, unarmoured, fire resisting shipboard cables rated 150V/250V

SH-CI-C-U-F S95 cables are designed for control and instrumentation applications in marine environments. They are fire-resistant, collectively screened to minimize interference, and unarmoured for flexibility. These cables are rated for 150V/250V operation and are suitable for fixed installations.

Technical Data

Conductor: Bare (optional tinned) copper class 5 according to IEC 60228
Insulation: Silicon compound S95 according to IEC 60092-360. Thickness according to IEC 60092-376
Core Identification (preferential): Single: black with numbers 1, 2, 3,… Pair: black, white with numbers 1-1, 2-2, 3-3, … Triple: black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, … Quad: black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
Single core assembly: Each core assembled forming pairs or triples or quads (unit)
Unit Assembly: All cores or units assembled in round formation with suitable fillers and non-hygroscopic tape(s)
Collective Screen: Aluminium/polyester tape with drain wire
Outer Sheath: SHF1 compound according to IEC 60092-360. Thickness according to IEC 60092-376. Colour: orange (or other colour agreed). Outer diameter according to IEC 60092-350 annex D
Marking: Cable diameter > 20mm: UNIKA (Italy) – SH-CI-C-U-F S95 150/250 V 90°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-1 – traceability code Cable diameter ≤ 20mm: UNIKA (Italy) – SH-CI-C-U-F S95 150/250 V 90°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-2 – traceability code
Rated Conductor Temperature (Fixed Installation): 90°C
Minimum Installation Temperature: -15 °C
Minimum Bending Radius: 6D: D is the overall diameter
Fire Behaviour: IEC 60332-3-22 not fire propagation IEC 60332-1-2 not flame propagation IEC 60331-21, IEC 60331-1 (2) fire resistant IEC 60754-1 halogen content IEC 60754-2 pH and conductivity IEC 60684-2 fluorine content IEC 61034 smoke emission

SKU LAPP-N8104S
MPN N8104S
