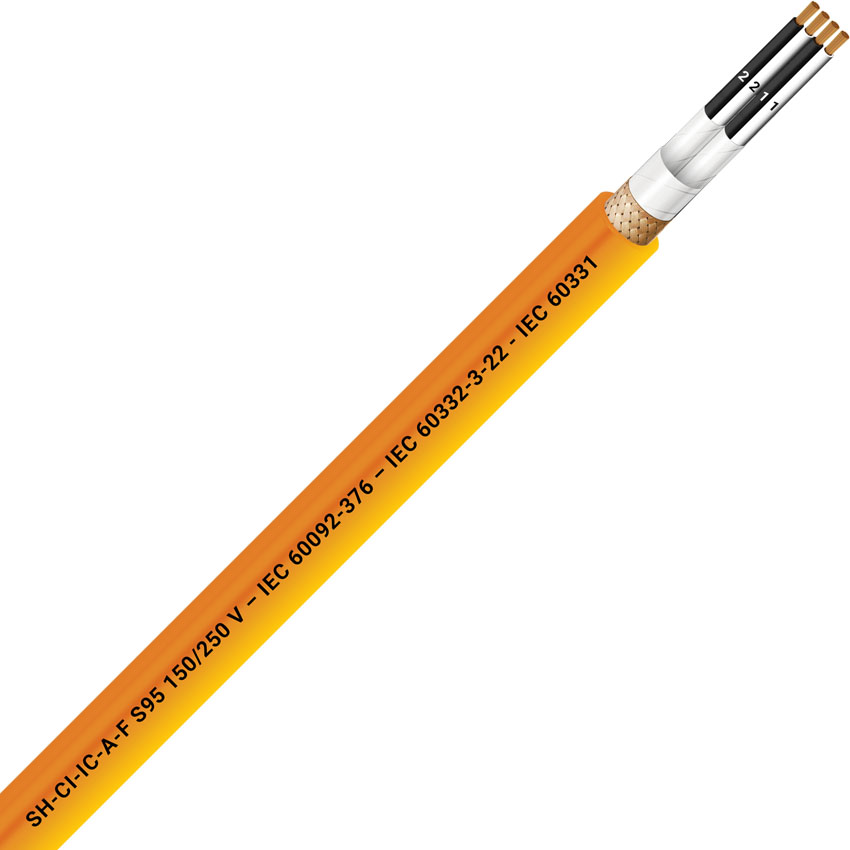

Armoured Individually & Overall Screened 2x2x1.5 Orange

SH-CI-IC-A-F S95

Control and instrumentation, individually and collectively screened, armoured fire resisting shipboard cables rated 150V/250V

These cables are designed for control and instrumentation applications on ships. They feature individual and collective screening to minimize interference, armouring for mechanical protection, and are fire-resistant to maintain circuit integrity in the event of a fire. Rated for 150V/250V, they are suitable for fixed installations with a rated conductor temperature of 90°C.

Technical Data

• Conductor: Bare (optional tinned) copper, Class 5 according to IEC 60228
• Insulation: Silicone compound S95 according to IEC 60092-360, thickness according to IEC 60092-353
• Core Identification (Preferential): Pairs: black, white with numbers 1-1, 2-2, 3-3, … Triples: black, white, red with numbers 1-1-1, 2-2-2, 3-3-3, … Quads: black, white, red, blue with numbers 1-1-1-1, 2-2-2-2, 3-3-3-3, …
• Single Core Assembly: Cores assembled forming pairs, triples, or quads (unit)
• Individually Screened: Aluminium/polyester tape with drain wire (optional bare or tinned copper wire braid)
• Unit Assembly: Cores/units assembled in round formation with suitable fillers and non-hygroscopic tape(s)
• Collective Screen: Aluminium/polyester tape with drain wire
• Inner Covering: Non-hygroscopic tape(s)
• Armouring: Bare copper braid (upon request tinned copper or galvanized steel wire braid), Minimum coverage 90%
• Outer Sheath: SHF1 compound according to IEC 60092-360, thickness according to IEC 60092-376, Colour: orange (or other colour agreed), Outer diameter according to IEC 60092-350 annex D
• Marking: Cable diameter > 20mm: UNIKA (Italy) – SH-CI-IC-A-F S95 150/250 V 95°C (nr anime) x (nr unità) x (sezione) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-1 – traceability code. Cable diameter ≤ 20mm: UNIKA (Italy) – SH-CI-IC-A-F S95 150/250 V 95°C (nr anime) x (nr unità) x (sezione) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-2 – traceability code
• Rated Conductor Temperature (Fixed Installation): 90°C
• Minimum Installation Temperature: -15°C
• Minimum Bending Radius: 6D (D is the overall diameter)
• Fire Behaviour: IEC 60332-3-22 not fire propagation, IEC 60332-1-2 not flame propagation, IEC 60331-21, IEC 60331-1 (2) fire resistant, IEC 60754-1 halogen content, IEC 60754-2 pH and conductivity, IEC 60684-2 fluorine content, IEC 61034 smoke emission

SKU LAPP-NH2C7S
MPN NH2C7S
